AC-DC Power Supply Adapter - 240V AC to 5V / 12V DC 1.5A for USB HDD Enclosure
APD DA-30C01 Dual-Voltage Adapter
5V & 12V DC Output | 4-Pin Mini-DIN Connector | 30W High-Stability PSU
The APD DA-30C01 is a high-quality switching power supply designed for devices requiring simultaneous dual-rail power. Engineered to provide independent 5V and 12V outputs, this unit is the industry-standard replacement for external 3.5" HDD enclosures, bridge adapters, and specialized networking hardware.
Technical Specifications
| Attribute | Specification |
| Model Number | DA-30C01 |
| Input Voltage | 100V – 240V AC |
| Input Current | 0.8A Max |
| Output Rail 1 | 5V DC @ 1.5A (Logic/Data Rail) |
| Output Rail 2 | 12V DC @ 1.5A (Motor/Fan Rail) |
| Total Power | 30 Watts |
| Output Connector | 4-Pin Mini-DIN (Round) |
| DC Cable Length | Approx. 1.2 Meters |

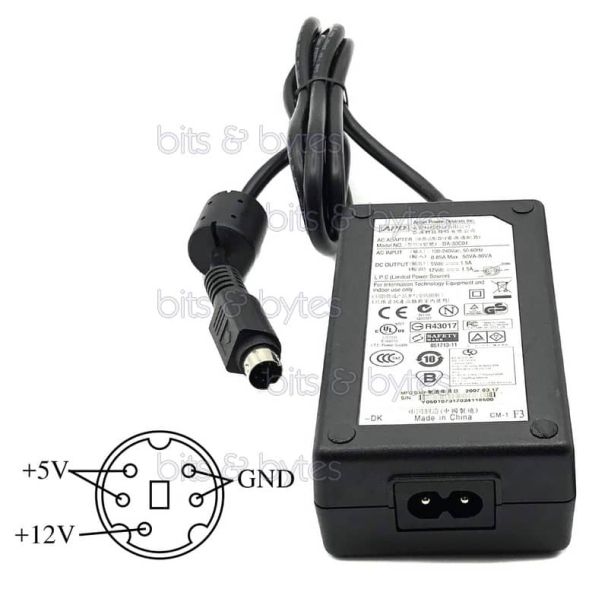

Connector Pinout Configuration
The DA-30C01 typically follows the standard high-output configuration for external drives. Note: Always verify your device’s port diagram before connecting.
-
Pin 1: +5V DC
-
Pin 2: +12V DC
-
Pin 3: GND (Ground)
-
Pin 4: GND (Ground)
-
Shield: Grounded
Key Features & Reliability
-
Dual-Rail Regulation: Unlike single-voltage adapters with splitters, the DA-30C01 features dedicated regulation for both rails, ensuring that the 12V motor "spin-up" draw doesn't cause a voltage drop on the 5V logic rail.
-
OEM Compatibility: Direct replacement for many 3.5" USB 2.0/3.0 external cases.
-
Advanced Safety Circuitry: * Internal fuse protection against input surges.
-
Short-circuit protection with "Auto-Restart" functionality.
-
Low ripple and noise for sensitive data transmission.
-
-
Energy Efficient: Switching technology ensures minimal heat dissipation during continuous operation.
Note: This unit uses a standard "Figure-8" (C7) AC input cable. The cable is not included.
| Colour | Black |
|---|---|
| Voltage | 5V, 12V |
| Amps | 3A |
| Wattage | 30W |
