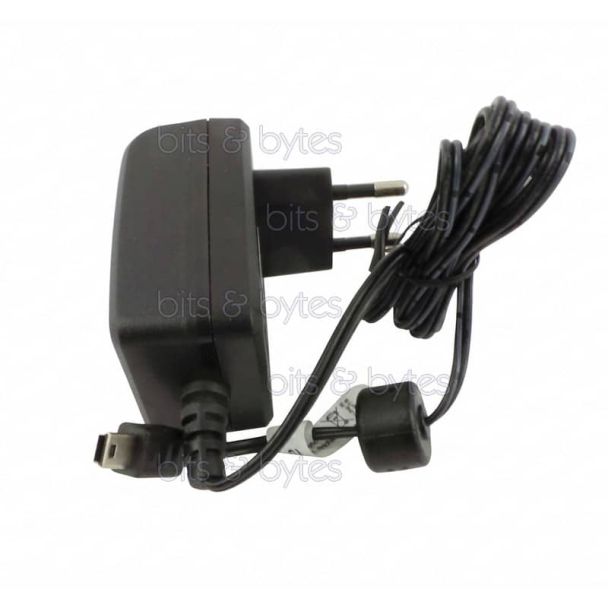

DC Power Adapter

5V DC Output | 1.5A (7.5W) | Interface: Mini-USB (Mini-B)

This high-performance switching power supply (SMPS) engineered for devices utilizing the Mini-USB (USB Mini-B) power interface. Delivering a stable 7.5W output, this adapter is designed to provide clean, ripple-free current to sensitive digital devices. Unlike standard consumer chargers, this unit is built for continuous duty, featuring industrial-grade components to ensure long-term voltage stability.

Technical Architecture & Protection

• Mini-USB Power Delivery: Specifically wired for power delivery via the Mini-B interface. Ideal for legacy hardware that requires a higher amperage (1.5A) than standard computer USB ports (typically 0.5A) can provide.

• EMI/RFI Suppression: Integrated filtering circuits prevent electromagnetic interference, making it suitable for use near medical equipment, radio receivers, or high-accuracy sensors.

• Safety Suite:

  • Over-Voltage Protection (OVP): Safeguards the connected device against internal component failure.

  • Short Circuit Protection (SCP): Automatic shut-down and recovery logic.

  • Over-Current Protection (OCP): Limits current to 1.5A to prevent thermal stress on the device's charging circuit.

Technical Specifications

• Model: SA110C-05GS-A
• Input Voltage: 100V – 240V AC
• Input Frequency: 50 / 60 Hz
• Output Voltage: 5V DC
• Output Current: 1.5A (1500mA)
• Total Power: 7.5 Watts
• Connector Type: USB Mini (5-Pin Mini-B)
• Pinouts:
  • Pin 1: Positive (+)
  • Pin 2: NC
  • Pin 3: NC
  • Pin 4: NC
  • Pin 5: Negative (-)
• Certification: UL, CE, GS, RoHS

Hardware Compatibility

This Mini-USB variant is a critical replacement for:

• External HDD Controllers: Early portable 2.5" drive enclosures that utilise a separate Mini-USB for power.

• Industrial Handhelds: Specialized barcode scanners and early-generation rugged tablets.

• Digital Cameras: Studio-grade cameras that require a constant power source for tethered shooting.
