Digitus USB 3.1 Type-C Mobile Docking Station

Description

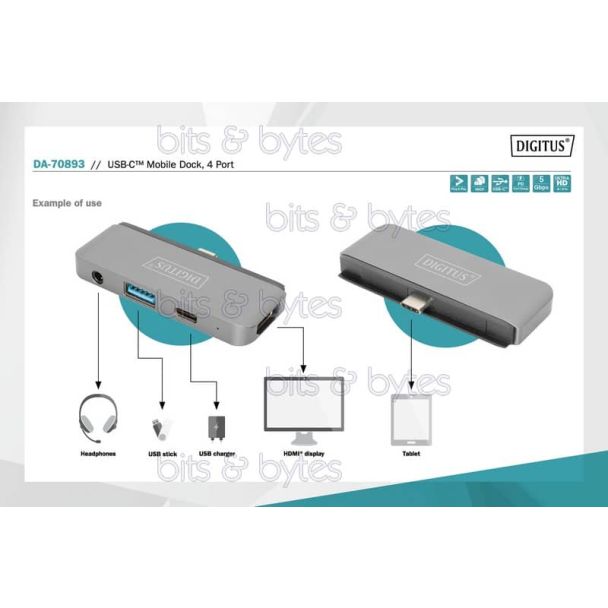

The mobile docking station from DIGITUS expands, e.g., your iPad Pro, MacBook, Surface Go or any USB-C devices (DP Alt Mode support) by 4 additional interfaces. Enjoy the content of your tablet on a large TV, monitor or projector. Mirror or extend (Extended of the desktop only possible with Windows) your desktop using the 4K HDMI interface of the dock. Using the additional USB-C jack you can also charge your tablet during operation with up to 100 W (20 V / 5 A) - Power Delivery 3.0 makes it possible. There is also an integrated USB 3.0 interface with up to 5 Gbps data transfer rate, to which additional peripheral devices such as an external hard drive, USB sticks or downwardly compatible USB devices can be connected. The docking station also has a stereo audio connection that can be used to connect headphones or a headset. The mobile docking station can be directly connected to the USB-C slot of the tablet to save space, and its compact size means that it also fits in any jacket pocket. Expand your interfaces at any time using Plug & Play with the mobile DIGITUS Docking Station - specially designed for tablets.

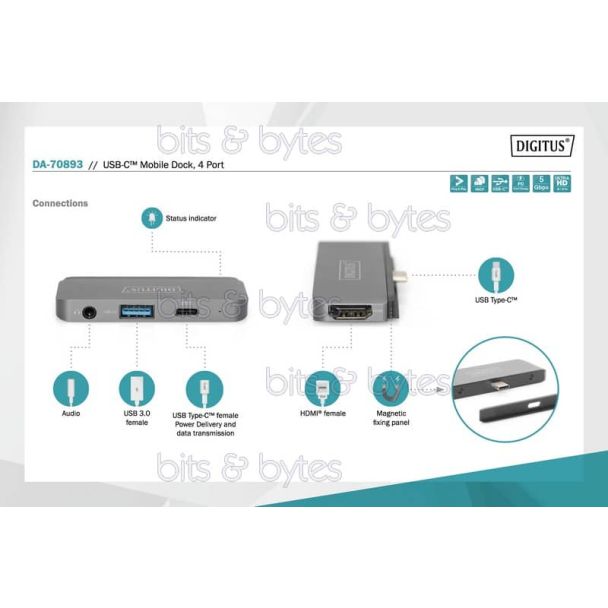

• Can be directly docked onto your mobile device using USB-C - with magnetic fixing

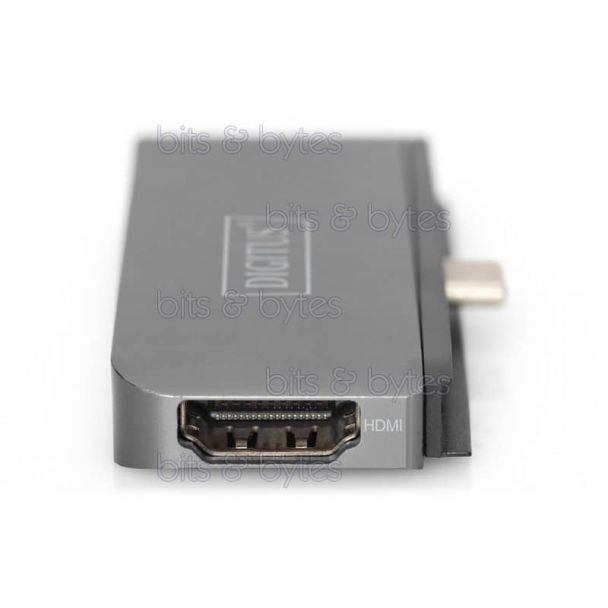

• 1 x HDMI video connection with UHD 4K resolution (3840 x 2160P, 30 Hz)
• 1 x USB-C connection with Power Delivery (PD 3.0) for fast charging (100 W max.) and data transmission (480 Mbps)
• 1 x USB 3.0 connection with SuperSpeed, 5 Gbps max.
• 1 x Stereo audio connection 3.5 mm for headphones or microphone
• Compatible, for example, with iPad Pro, MacBook, Surface Go and all USB-C devices that support DisplayPort Alternate Mode
• Playback on HDMI monitors, TVs or projectors in UHD
• Perfect for business travel, video conferences, gaming or home cinema
• Plug & Play - no driver installation required
• USB-C connection supports simultaneous charging + data transfer

Technical details

• Supports UHD resolution: 3840 x 2160p, 30 Hz
• Input: USB Type-C
• Outputs:
• 1 x HDMI: 4 K (3840 x 2160p, 30 Hz), Full HD (1920 x 1080p, 60 Hz)
• 1 x USB-C connection with Power Delivery (20 V / 5 A /100 W max.)
• 1 x USB 3.0 (SuperSpeed, 5 Gbps max.)
• 1x 3.5mm Audio Socket (48 K /44.1 KHz)
• USB-C supports data transmission of up to 480 Mbps with simultaneous loading via Power Delivery
• USB-C Power Delivery: 100W
• USB-C version: USB 3.0 (USB 3.1 Gen 1)
• HDMI version: 2.0
• HDMI 3D support
• HDCP version: 2.2
• HDTV Resolution max.: 3840 x 2160 Pixel, 30Hz
• Operating temperature: 0°C bis +40°C
• Operating humidity: 20% bis 80% RH (non-condensing)
• Dimensions: L 7,4 x W 2,6 x H 0,9 cm
• Material: Aluminum
• Weight: 24,5 g
• Color: Grey
• Operating System:
• macOS EL Capitan / X Yosemite
• Windows 10, Windows 11
• Google Chrome OS
• Android 9 or higher
• Compatible devices:
• Apple iPad Pro, MacBook
• Microsoft Surface Go
• All USB-C devices that support DisplayPort Alternate Mode

Please note that:

• Mirroring of the desktop is possible with Windows, macOS & iOS.
• Extension of the desktop is only possible with Windows.
• Not all USB-C ports support all functions of the USB Type-C standards. Make sure that your notebook’s USB-C port supports the DisplayPort Alternate Mode (DP Alt Mode) as well as USB Power Delivery (PD).

Package content

• USB-C mobile docking station, 4 port
• Quick installation guide
