- Cash tray for 410-type cash drawers (KS-410 or KR-410 Drawers).
- 4 or 5 bill sections (available space for banknote is 340mm)
- 8 coin sections
- ABS high-quality cash tray,
- Size: 353mm(W) x 324mm(D) x 60mm(H)

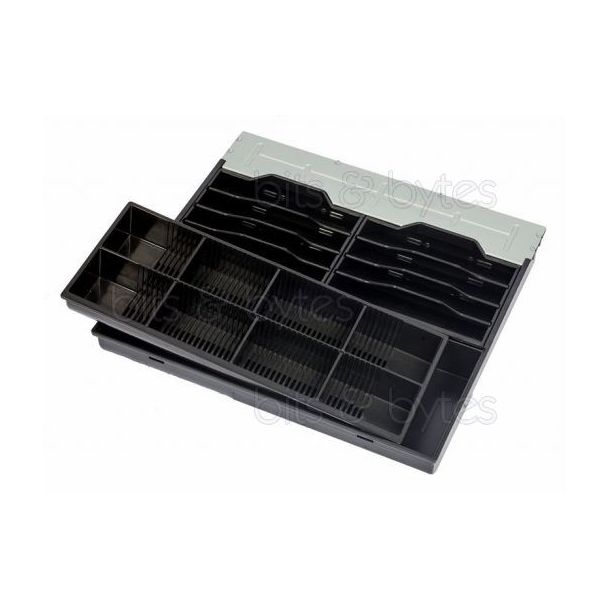

8B8C Vertical Note Drawer Insert
8 Vertical Note Compartments | 8 Coin Wells | High-Speed Design
The 8B8C Vertical Note Insert is a professional-grade replacement tray specifically engineered for the KR-410 and KS-410 series cash drawers. This specialised layout replaces standard horizontal bill-clips with Vertical Note Compartments, allowing simultaneous organisation of 8 different banknote denominations or a mix of currency and media in a high-volume retail environment.
Technical Architecture & Benefits
-
Vertical Note Technology: Banknotes are stored on their long edge in deep-profile slots. This orientation maximises space, providing 8 independent note sections within the same footprint that typically only holds 4 or 5 horizontal bills.
-
High-Speed "Drop-In" Access: The vertical design is inherently "clipless," allowing cashiers to drop currency into slots instantly without the mechanical delay of lifting and resetting tension arms.
-
Organisation: Features 8 note compartments and 8 high-capacity coin wells, ensuring every standard denomination has a dedicated, non-mixed location for faster end-of-shift reconciliation.
-
Structural Integrity: Manufactured from industrial-strength, shatter-resistant ABS plastic, reinforced with a galvanised steel header for a precision fit in a 410mm cash drawer.
Technical Specifications
- Compatibility: KR-410, KS-410, KT-410
- Note Layout:
- 8 Vertical Note Compartments (Clipless)
- available space for banknotes is 340mm
- Coin Layout: 8 Fixed Coin Compartments

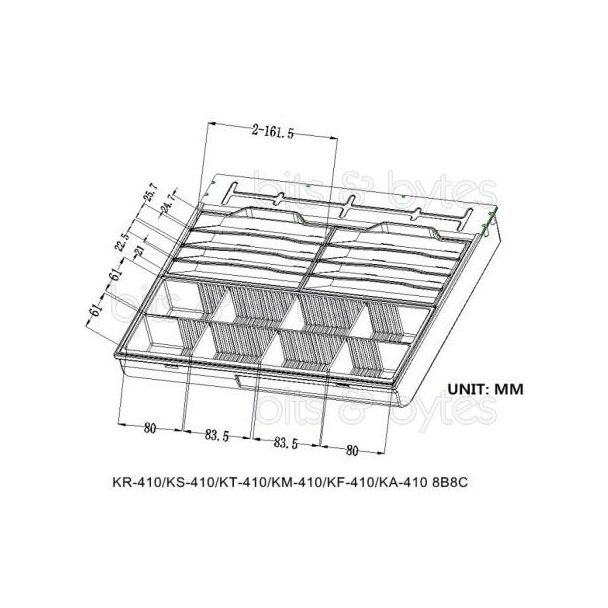

- Dimensions: 353mm (W) x 324mm (D) x 60mm (H)
- Material: High-Impact ABS Plastic & Electro-Galvanized Steel
- Weight: ~1.8 kg - 2.0 kg
Engineering Highlights
-
Maximum Denomination Density: Perfect for international environments or businesses that handle high volumes of varying banknote types.
- Precision Fit: Optimised for the standard 410mm x 420mm x 100mm drawer housing, ensuring smooth gliding on existing ball-bearing rollers.
-
Removable Design: Specifically weighted and balanced for easy removal for float changes or secure overnight storage in a safe.
Recommended Applications
-
High-Volume Supermarkets: Where rapid till turnaround and high banknote capacity are essential.
- Busy Bars & Nightclubs: Where speed of cash drop-off is prioritised over static retention..
| Colour | Black |
|---|---|
| Model | KR-410 Cash Drawer, KS-410 Cash Drawer, KT-410 Cash Drawer |
| Part Type | Coin Trays |
