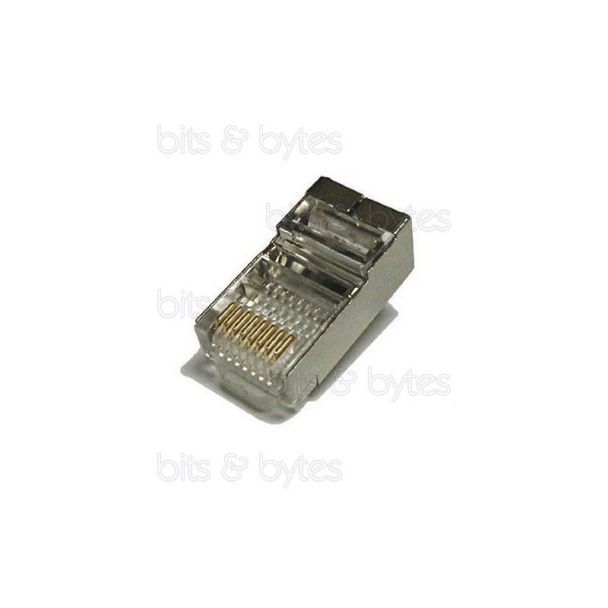

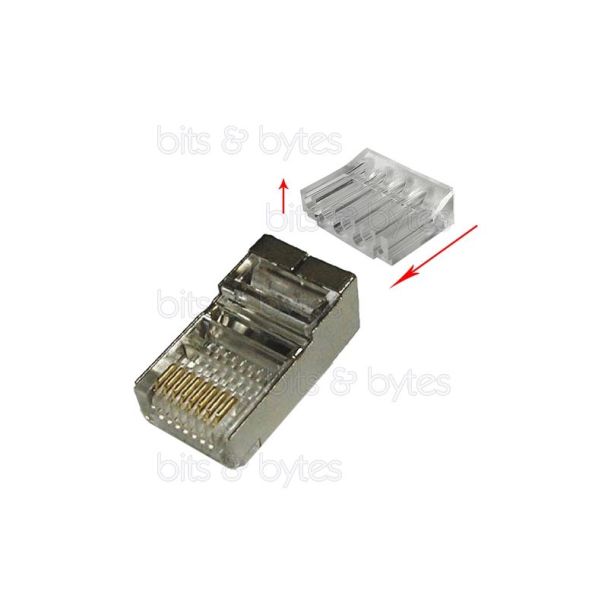

RJ45 CAT6 (AWG 26-23) Shielded Modular Plug for Round Cable
Layout performance | CAT 6, 1GBase-T |
Area of application | Patch cable assembly |
Norms | ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C |
General properties | UL certified |
Technical properties | |
Mating cycles female | > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 |
Material connector body | Polycarbonat, clear |
Connector contact | Phosphor bronze, brass 0.6 μ gold-plated |
Flammability | Â UL 94V-2 |
Physical properties | |
Insertion force | ≤ 30 N |
Diameter Cu-Conductor | AWG (27/7 ... 24/7) / AWG (26/1 ... 23/1) |
Operating temperature | -40 °C to +80 °C |
Current carrying capacity | 1A -1.5A at 50 °C |
Colour | Silver |
---|---|
Connection | RJ45 |
Type | Connector |
Speed | Gigabit |
Interface | Ethernet |
