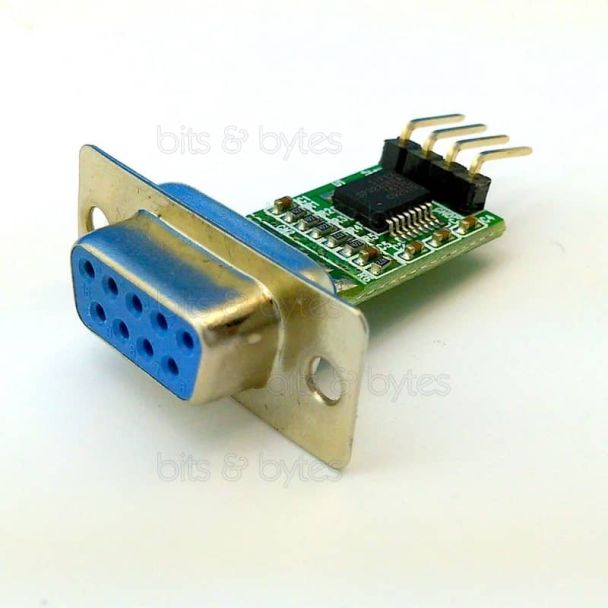

Serial RS232 to TTL Converter

The serial RS-232 to TTL converter supports standard signals of the RS-232C interface (sending of TXD and receiving RXD signals) and converts them to TTL / CMOS level.

TTL side of the converter supports voltages of 0V - 5V. An external power source is not needed. By the use of the patented RS-232 chipset, the initialization of the RS-232 interface is not required. This allows the machine to ve used without delay. The adapter supports the automatic detection of the data transfer direction of the I/O ports. The detecting does not require handshaking signals (RTS, DTR) and ensures for RS-232 duplex mode applications in adaptation to TTL level full compatibility, without changing the software. Thus, no modifications need to be performed to software and hardware before using the adapter.

• Conforming to EIA/TIA RS-232 and TTL/CMOS
• Trasmission mode: full duplex, asynchronous
• Transmission rate: 300 - 115200 bps
• Transmission distance: 5m
• Compatible with Windows, MAC OS and Linux
