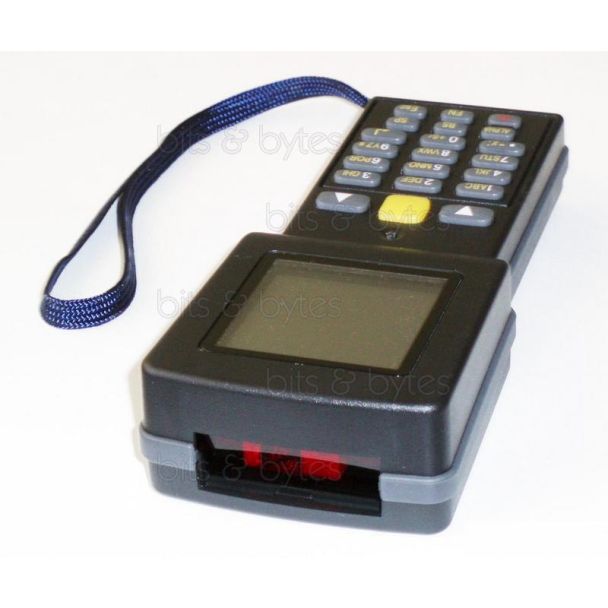

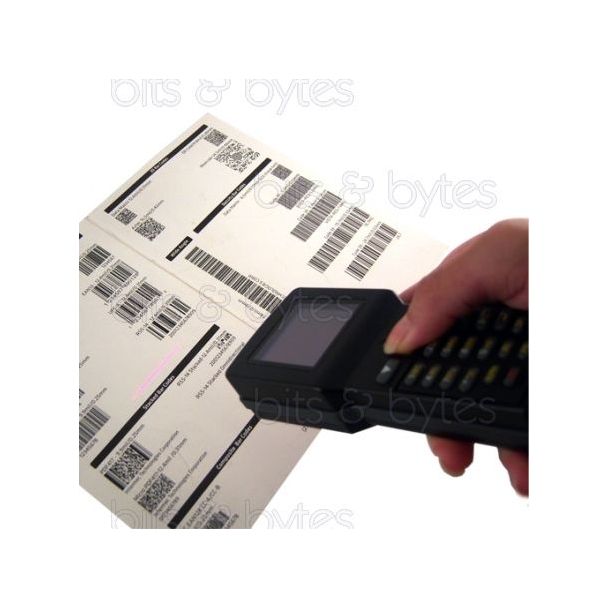

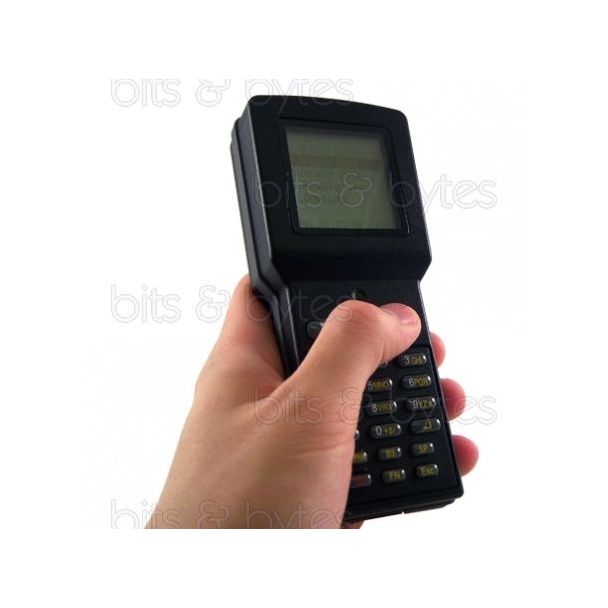

The BCP-7000 is a powerful data collector that allows its operator to collect data without distance limitation. This high-profile product has a built-in Lithium-ion battery and an additional backup battery for SRAM, allowing stand-alone operation and storage of thousands of data records.
Bundled with an embedded job-generator software, the portable data terminal provides users the ability to create customized database that suits their business needs. In addition, it is equipped with high quality laser scanner and large internal memory, making it the ideal device for inventory management and stocktaking.
- Ergonomic design ideal for long-time operation
- Large memory capacity for data record (up to 1MB)
- Ideal for inventory, stocktaking
- Vivid LCD display with clear blue backlight
- Integrated long range laser scanner
- Convenient task and data management
- Long-time battery capacity
- Data loss prevention through auxiliary battery for SRAM
| System | Processor | ST uPSD 8 bit CPU |
| Memory |
1MB SRAM 256KB Flash memory (store program software, codes, fonts, constant data) |
|
| Data Capacity | 9,999 records | |
| Display | 128x128 graphic dots FSTN LCD display with blue back light | |
| Keypad | 21 rubber key including alphanumeric keys, function keys, and scan trigger key | |
| Buzzer | Software programmable audio indication, 1KHz to 4KHz, low power transducer type | |
| LED | Dual Colour (Red / Green) LED Indicator | |
| Application Software | Operating System Support | Windows-base (2000 / XP / Vista / Windows 7 / Windows 8 / Windows 8.1) |
| Data/Task Management | Data/Task Management | |
| Scanner | Scanner Type | Visible Laser Diode, 640~660 nm |
| Scan Speed | 80~120 scans/sec | |
| Depth of Field | 5~65 cm | |
| Connectivity | Interface | USB (virtual COM Port) |
| Others | Battery | Rechargeable Lithium Battery Pack (1700 mAh / 3.7V) |
| Backup Battery | 3.0V, 18mAh, MaxeII ML, Rechargeable Lithium battery for SRAM | |
| Operating Time | Over 24 hours or more than 20,000 scans (LCD Backlight Off) | |
| Shock Resistance | 1.2m onto concrete | |
| Compliance | FCC / CE / WEEE / RoHS | |
| Weight | 175 g | |
| Dimension (L x W x H) | 150mm x 65mm x 30mm |
| Colour | Black |
|---|---|
| Scanner | Laser |
| Scan Engine | 1D |
| Type | Hand-Held, Reader |
| Interface | USB 2.0 |
| Storage | 1 MB |
