- 1D & 2D Barcode Label Printer
- Thermal Transfer & Thermal Direct Printing Technology

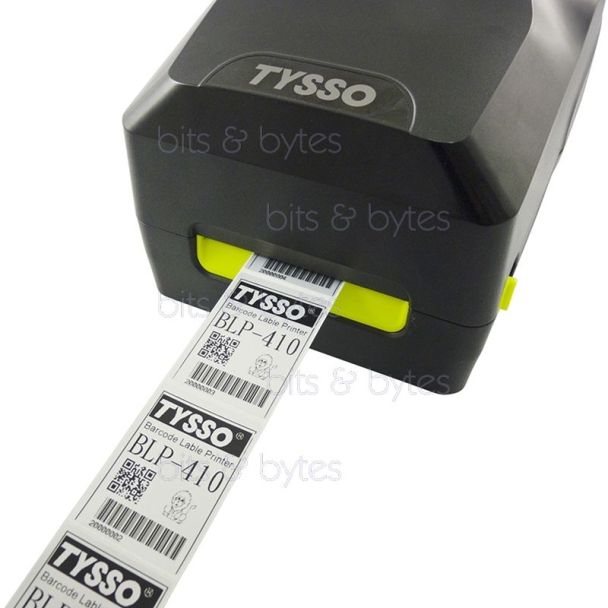

- Front-Dispensing Label Printing
- Durable Housing Suitable for Industrial Applications
- Print Speed: 2~6 inches/sec
- Large Paper Roll Capacity
- Audio Alert Notification
- 1D & 2D (QR Code) Barcode Printing Support
- Image Printing (bmp, pcx format available)
- Interface: Serial, Parallel, USB
- Easy Paper Jam Elimination
- Simple DIP Switch Configuration
- Variety of Industrial Applications: Manufacturing & Logistic industry, Medical and Healthcare, Parcel Post, Office Management, Retail & Wholesale
| Print Capabilities | |||||||
| Print Method | Thermal Transfer / Direct Thermal | ||||||
| Print Speed | 2~6 inches/sec | ||||||
| Print Head Lifecycle | 50 Km | ||||||
| Print Resolution | 203dots/inch(8dots/mm) | ||||||
| Maximum Print Width | 108mm (4.25 inches) | ||||||
| Maximum Print Length | 2286 mm (90 inches) | ||||||
| Print Font Character Support | English, Simplified Chinese, Traditional Chinese, Korean | ||||||
| Barcode Support |
1D: EAN-8, EAN-13, EAN 128, EAN 14, EAN and UPC 2(5) digits add-on, Codabar, Code 39, Code93, Code 128 subsets A/B/C, China Postage, ITF, MSI, MSIC, PLESSEY, ITF 14, UPC-A, UPC-E | ||||||
| 2D: QR Code | |||||||
| Image Printing Format | BMP, PCX | ||||||
| Rotate Degree | Yes (0, 90, 180, 270 degrees selectable) |
||||||
| interface | USB 2.0, Parallel, RS-232 (DB9 Female) |
||||||
| System Support | Win 7, Win 8, Win 10 | ||||||
| General | |||||||
| Power Input | +24VDC/2.0AÂ (with External Adapter 100~240VAC 50/60Hz) |
||||||
| Color | Black | ||||||
| Material | ABS | ||||||
| Compliance | FCC / CE / WEEE / RoHS | ||||||
| Weight | 2.09 Kg | ||||||
| Dimension (mm) | 222.94 (W) x 190 (H) x 284.83 (D) | ||||||
| Operating Temperature | 5°C~45°C | ||||||
| Operating Humidity | 25% ~ 85% RH non-condensing | ||||||
| Storage Temperature | -10°C~ 50°C | ||||||
| Storage Humidity | 10% ~ 90% RH non-condensing | ||||||
| Print Ribbon | |||||||
| The Ribbon Width | 110 mm (max.) 30 mm (min.) |
||||||
| Ribbon Diameter | 67 mm (max.) | ||||||
| Ribbon Axis Diameter | 25.4 mm (1 inch) | ||||||
| Print Label/ Print Paper | |||||||
| Paper Type | Continuous Paper, Gap Of Paper, Paper Folding, Punched Paper |
||||||
| Paper Width | 120 mm (4.72 inches, max.) 20 mm (0.78 inch, min.) |
||||||
| Paper Roll Diameter | 127 mm (5 inches, max.) | ||||||
| Paper Thickness (tag + bottom paper) |
0.254 mm (10 mil, max.) 0.06 mm (2.36 mil, min.) |
||||||
| Paper Roll Axis Diameter | 25.4 mm ~ 38 mm (1 inch ~ 1.5 inch) |
||||||
| Label Length | 10 ~2286 mm (0.39 inch ~ 90 inches) |
||||||
| Label Gape Spacing | 2 mm (0.09 inch, min.) | ||||||
| Colour | Black |
|---|---|
| Printing | Monochrome |
| Media | Barcode, Labels, Label Roll |
| Technology | Direct Thermal, Thermal Transfer |
| Type | |
| Interface | Serial, USB 2.0, Parallel |
