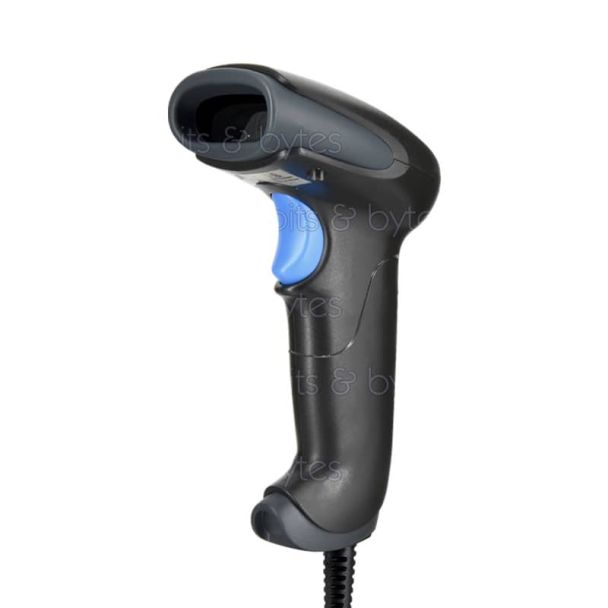

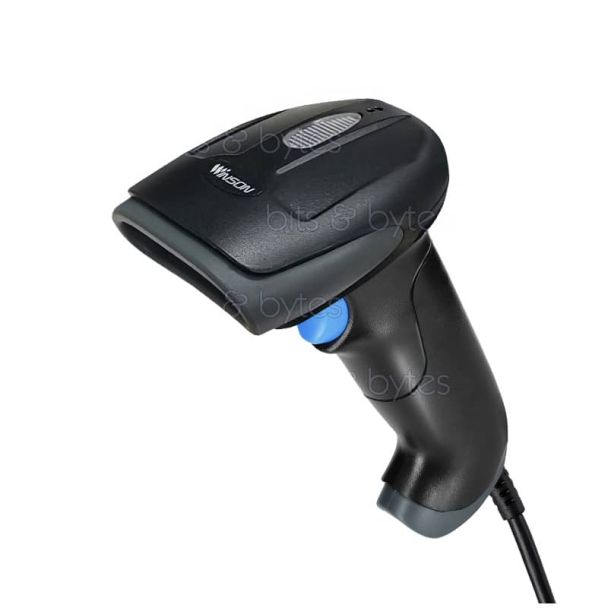

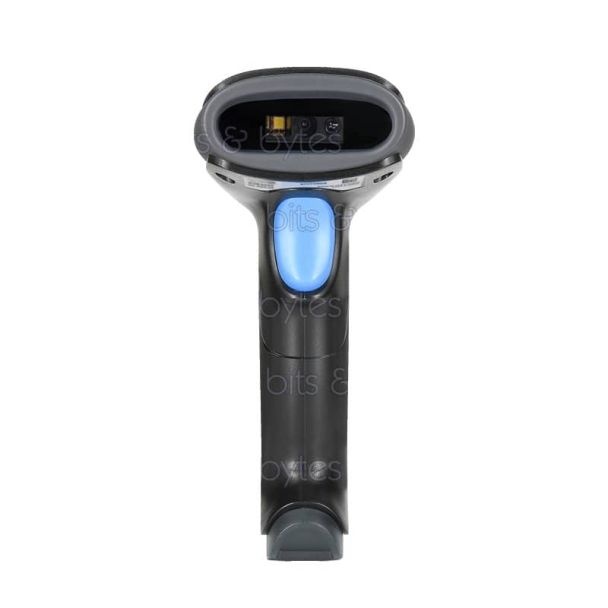

Winson WNI-C130 CMOS 2D Handheld Barcode Reader (USB Cable)
Upgrade your barcode scanning workflow with the Winson WNI-C130 – reliable, fast, and ready to work right out of the box.
Fast, Reliable & Versatile Barcode Scanning for Modern Businesses
The Winson WNI-C130 is a high-performance 2D wired handheld barcode scanner designed for retail stores, warehouses, logistics operations, healthcare environments, libraries, and office applications. Equipped with advanced CMOS imaging technology, the scanner delivers fast and accurate barcode reading for both 1D and 2D symbologies, ensuring smooth and efficient workflow management.
With plug-and-play USB connectivity, ergonomic design, and durable construction, the WNI-C130 offers an excellent balance of performance, reliability, and affordability for daily scanning tasks.
Key Features
Reads Both 1D & 2D Barcodes
- Supports a wide range of barcode formats, including:
- 1D Barcodes: Code 128, Code 39, Code 93, Code 11, Codabar, EAN-8 / EAN-13, UPC-A / UPC-E, ITF-6 / ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, RSS Series, ISBN / ISSN, MSI-Plessey, Plessey
- 2D Barcodes: QR Code, PDF417, Data Matrix
High-Speed CMOS Imaging
Featuring a 640 × 480 CMOS image sensor and decoding speed of up to 60 frames per second (FPS), the WNI-C130 provides rapid and accurate barcode capture, reducing wait times and improving operational efficiency.
Excellent Scanning Performance
-
Minimum resolution: 3 mil
-
Wide scanning angles for flexible operation
-
Supports scanning from various orientations
-
Fast recognition of damaged or poorly printed codes
Plug & Play USB Connection
- Simply connect via USB and start scanning immediately. Supports:
-
USB HID Keyboard Mode
-
USB Virtual COM Port (VCP)
-
-
No complicated setup required.
Custom Data Output
Supports custom data editing and output formatting, allowing integration into different business workflows and software systems.
Durable Industrial Design
- Built to withstand daily commercial use with:
-
1.5-meter drop resistance onto concrete surfaces
-
Lightweight ergonomic construction
-
LED and beeper indicators for instant scan confirmation
-
Ideal Applications
-
Retail Stores & Supermarkets
-
Warehouses & Inventory Management
-
Logistics & Distribution Centers
-
Healthcare Facilities
-
Libraries
-
Manufacturing Operations
-
Office Automation
-
Point-of-Sale (POS) Systems
Technical Specifications
Optical Performance
- Image Sensor: CMOS Array Sensor
- Sensor Resolution: 640 × 480 Pixels
- Illumination: White LED
- Aiming Light: Red LED
- Decoding Speed: 60 FPS
- Minimum Resolution: 3 mil
- Field of View: 45° (H) × 34° (V)
Electrical Specifications
- Interface: USB HID Keyboard / USB VCP
- Input Voltage: DC 5V ±5%
- Operating Current: 80mA
Physical Specifications
- Dimensions: 70 × 90 × 165 mm
- Weight: 130 g
- Indicators: LED & Beeper
Environmental Specifications
- Operating Temperature: -20°C to 60°C
- Storage Temperature: -30°C to 70°C
- Humidity: 5% – 95% RH (Non-condensing)
- Drop Resistance: 1.5 m onto concrete
Depth of Field
| Barcode Type | Resolution | Near Distance | Far Distance |
| Code 128 | 20 mil | 80 mm | 300 mm |
| EAN-13 | 13.34 mil | 40 mm | 270 mm |
| QR Code | 20 mil | 40 mm | 210 mm |
| PDF417 | 13.34 mil | 40 mm | 210 mm |
| Data Matrix | 10 mil | 50 mm | 100 mm |
Package Includes
-
Winson WNI-C130 Barcode Scanner
-
USB Cable
-
User Guide
| Colour | Black |
|---|---|
| Scanner | CMOS |
| Scan Engine | 2D |
| Type | Hand-Held, Wired |
| Interface | USB 2.0 |
