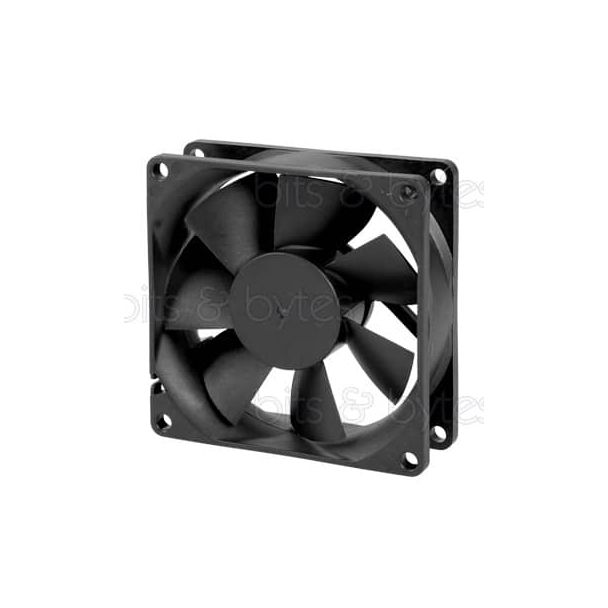

12V DC 120mm x 120mm x 25mm Cooling Fan

120mm x 120mm x 25mm | 12V DC | Medium-Speed Performance

The Evercool EC12025M12SA is a versatile, 120mm industrial-grade cooling fan designed for reliable heat dissipation across a wide range of electronic and mechanical systems. Combining a 2300 RPM rotational speed with a high-volume airflow of 84.98 CFM, this model provides an optimal balance between static pressure and acoustic efficiency.

• Sleeve Bearing System: Utilizing a high-precision sleeve bearing, the "S" variant is optimized for horizontal mounting and cost-effective, long-term operation in standard temperature environments.

• Medium-Speed Calibration: The "M" designation signifies a medium-speed motor curve, delivering higher throughput than silent-series fans while maintaining manageable noise levels (<41 dBA).

• Advanced Aerodynamics: The 7-blade impeller design is engineered for low turbulence, ensuring a consistent P-Q (Pressure-Flow) curve suitable for both chassis ventilation and heatsink cooling.

• Signal Monitoring: The "A" suffix indicates a 3-pin connector configuration with an integrated FG (Frequency Generator) tachometer signal, allowing the system BIOS or controller to monitor real-time RPM for fail-safe operation.
