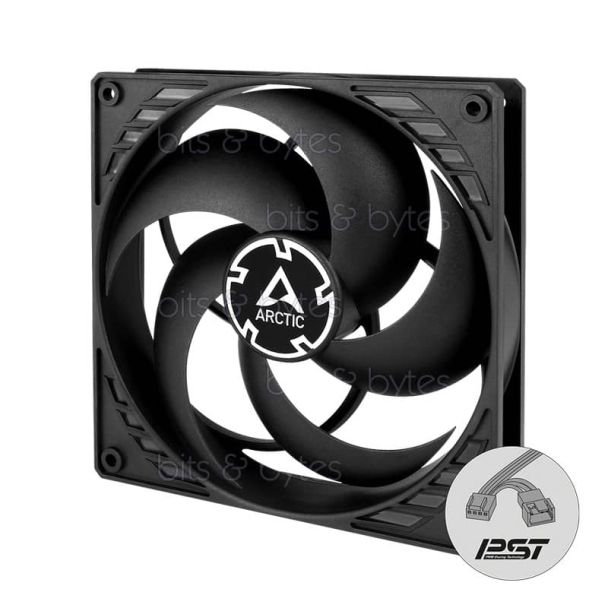

12V DC 140mm x 140mm x 27mm Cooling Fan

Optimised for Static Pressure
During the development of the new P14 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST CO is particularly suitable for use on heatsinks and radiators.

0 dB Mode — Zero rpm
The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

More Efficient Technology
The motor is powered by a PWM IC of the newest generation, which allows the new P14 PWM PST CO to run much more efficiently than its predecessors. This saves energy without compromising the performance.

For Continuous Operation
The premium quality of the dual ball bearing allows 24/7 continuous operation without compromising performance. Contamination and high temperatures affect this bearing much less than ordinary sleeve or ball bearings. Therefore, the dual ball bearing is the perfect choice if you want to ensure continuous operation at maximum speed. Please note that ball bearings have a physically higher bearing noise compared to conventional sleeve bearings.

Maximum Quietness, Minimum Vibration
Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

200 to 1700 rpm Regulated via PWM
With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

Two Way Installation

• Push warm air out of the case
• Pull cool air into your case

• Performance
  • Fan Speed: 200—1700 rpm PWM Controlled (0 rpm below 5 % PWM)
  • Airflow: 72.80 cfm | 123.76 m³/h
  • Static Pressure: 2.40 mmH2O
  • Noise Level: 0.3 Sone
  • Operating Ambient Temperature: 0—40 °C
• Fan
  • Fan Frame: Standard
  • Control Type: PWM PST
  • Connector: 4-Pin Connector + 4-Pin Socket
  • Fan Bearing: Dual Ball Bearing
• Electric Characteristics
  • Typical Voltage: 12 V DC
  • Starting Voltage: 3.9 V
  • Current | Voltage: 0.12 A | 12 V DC
  • Cable Length: 400 mm
• Size & Weight
  • Length: 140 mm
  • Width: 140 mm
  • Height: 27 mm
  • Weight: 194 g
