Assnet100 CAT5e U-UTP Network Installation Cable (305m)

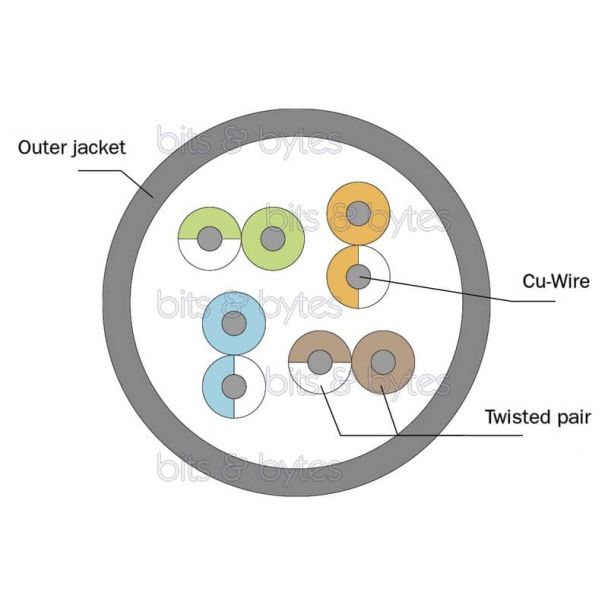

The ASSNET100 Cat 5e U/UTP installation cable is characterized by the following cable construction 4x2x AWG24/1 CCA wires and reaches a transmission frequency up to 100 MHz. The PVC jacket is conform to the CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area.
- 1GBit Ethernet
- 100 Mhz transmission frequency
- CPR class Eca
- Category 5e cables are made of 4 of high-performance twisted pair conductors. The cable standard provides performance of up to 100 MHz.
- This cable can be used for networks running up to 1 Gigabit ethernet.
-
U-UTP: Unshielded Unshielded Twisted Pair – U-UTP cables consist of pairs of wires twisted together with no electrical shielding. This is one of the most basic methods used to help prevent electromagnetic interference.
- Is suitable for building structured cabling in the secondary and tertiary area.
Physical properties |
|
| Conductor | Copper covered aluminum, solid AWG 24/1 |
| Total number of insulated conductors | 8, twisted in 4 pairs |
| Colour code | Blue-white, orange-white, green-white, brown-white |
| Individual pair shield | None |
| Overall shielding | None |
| Outer sheath | Eca acc. to EN 50575; PVC |
| Outer sheath diameter (nominal) | 0,50 mm nominal |
| Outer sheath colour | Grey (RAL 7035) |
Mechanical Properties |
|
| Tensile loading | 150N max. |
| Dynamic bending radius | 8x AD mm min. |
| Static bending radius | 4x AD mm min. |
| Shipping- and storage temperature range | -20 °C up to +75 °C |
| Operating temperature range | -20 °C up to +60 °C |
| Installation temperature range | 0 °C up to +50 °C |
Electrical Properties |
|
| Impedance | 100±15 Ohm @ 1-100 MHz |
| Capacitance | 40 pF/m nominal @ 800 Hz |
| Capacitance unbalance (pair-ground) | 1.5 pF/m max. @ 1 KHz |
| Insulation resistance | 2 GOhm x km min. |
| DC loop resistance | 262 Ohm/km max. (2% max. resistance unbalance) |
| Voltage resistance | 72 Vdc max. |
| Coupling attenuation | CA-Type 3 |
Other |
|
| Signal propagation delay | 535 nS/100 m max. |
| Propagation delay | 20 nS/100 m max. |
| Separating class | ,,b" acc. to EN 50174-2 |
| Maximum operating length | 60 m |
| NVP | 69% |
| Assortment | Twisted Pair Installation Cables |
| Category | CAT 5e |
| Shielding | U-UTP, unshielded |
| CPR | Eca |
| Length | 305 m |
| Colour | grey |
| Jacket | PVC |
| Structure | 4 x 2 AWG 24/1, solid twisted pair |
| Colour | White |
|---|---|
| Type | CAT 5e |
| Length | 305 m |
| Shielding | U-UTP |
| Conductor | Copper Clad Aluminium |
| Outdoor | No |
