CMI-8014PZ CMOS 2D Handheld Barcode Reader (Bluetooth / RF Wireless USB / USB Cable)

Winson WNI-8014PZ CMOS 2D Handheld Barcode Reader (Bluetooth / RF Wireless USB / USB Cable)

Name: Winson WNI-8014PZ CMOS 2D Handheld Barcode Reader (Bluetooth / RF Wireless USB / USB Cable)
Brand: Winson
SKU: 320138
Price: 165.742801 EUR
Availability: OutOfStock

Out of stock

SKU

320138

Be the first to review this product

Special Price €165.74 Regular Price €195.00

Notify me when this product is in stock

Winson

CMI-8014P/Z

2D Image Wireless Barcode Scanner - Quickly reads 1D or 2D barcodes

The CMI-8014P/Z, gives you the flexibility on how data is transferred, by giving you multiple options of connections:

USB cable to connect to the computer via the USB port,

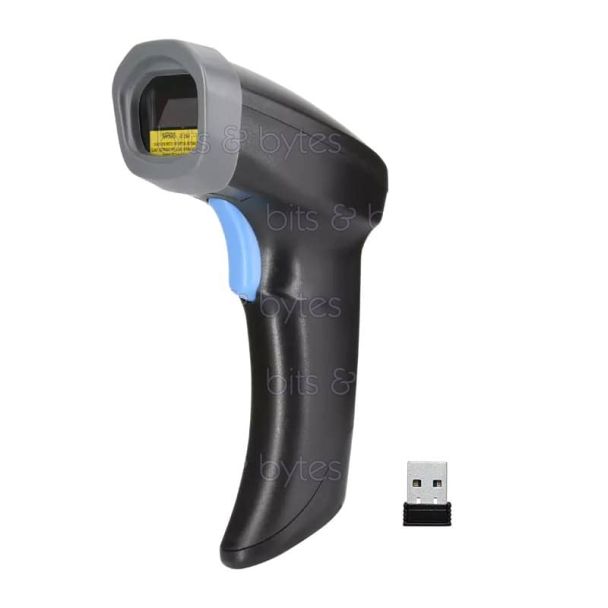

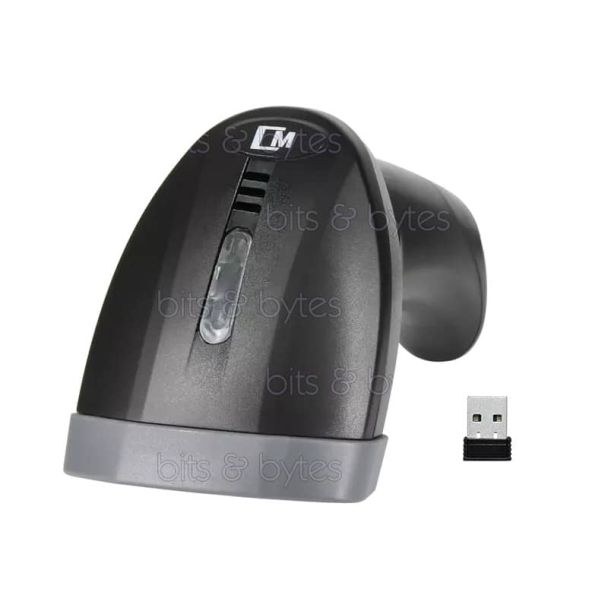

RF 2.4GHz Wireless with Nano USB receiver connected to the USB port,
Bluetooth connection to use with computer, tablet or mobile

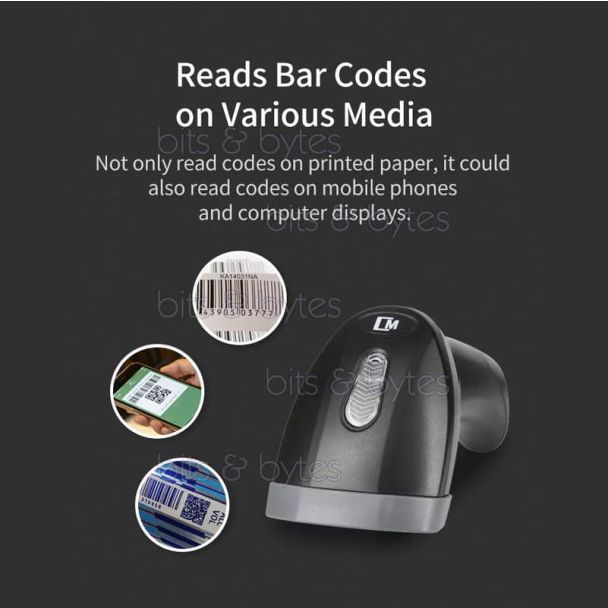

This barcode scanner can accurately read blurring, incomplete, dirty code, damaged code, high capacity bar code at a super-fast speed in different environments. Also, the barcode does not have to be on printed paper, but it can read also codes on mobile phones and computer displays.

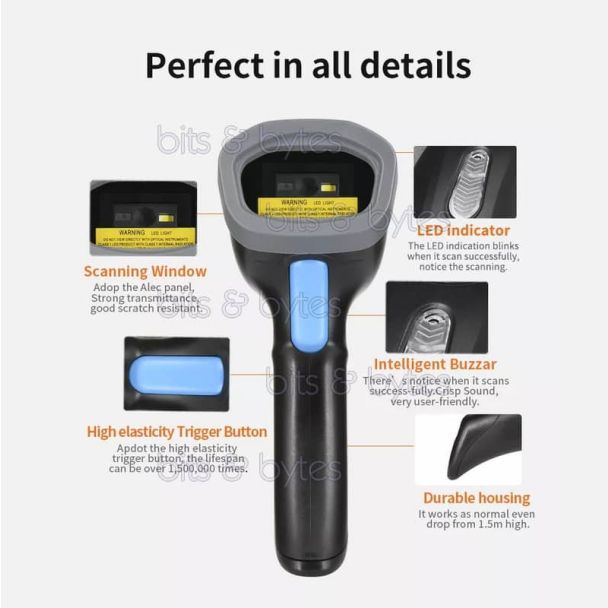

Long life span

Shockproof and Anti-broken: The scanner shell ABS material can withstand multiple 1.5m free fall drops on the concrete surface floor.
Famous brand C&k button: It uses the world-famous brand C&k trigger button, which even after 1500,000 times triggered, still works normally.

Wireless Features
Communication mode	USB Wired transmission mode Wireless Transmission mode: Bluetooth v4.0 RF 2.4GHz (USB receiver)
Communication mode	Wired USB: Real-time mode Bluetooth: Read-time mode / Inventory mode / Cache mode 2.4GHz: Receiver Mode
Transmission range	30 meters (line of sight)
Battery capacity	2000mAh lithium battery
Battery charging	About 5 hours
Full charge lifetime	6h (continuous reading) 9.5h (Manual reading) More than 15 days (Stand-by time)
Memory	Accumulated 5000 ~ 100,000 barcode data (512,000 Bytes)
Electrical Characteristics
Interface Supported	USB HID KEYBOARD / USB VSP
Input Voltage	DC 5V±5%
Current	240mA
Optical Characteristics
Image Sensor	CMOS Array Sensor
Sensor Resolution	640 X 480 Pixels
Light Source	White LED
Aim Light Source	RED LED
Electrical Characteristics
Interface	USB HID KEYBOARD USB VCP (Wireless receiver)
Voltage requirement	Max: 120mA Min: 50mA
Performance Characteristics
Decode Capability	1D: UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI, GS1 Databar, etc. 2D: Airline 2 of 5, Aztec Code, Data Matrix, Grid Matrix Code, GS1 Composite Codes, Maxi Code, PDF417, QR Code, etc
Physical Characteristics
Scanner Dimensions	85mm x 37mm x 25mm (LxWxH)
Scanner Weight	186g
Colour	Black
Material	ABS+PC
IP Grade	IP 42
Environmental Characteristics
Temperature	Operation: -10°∽60°C Storage: -20°∽60°C
Humidity	5 - 90%
Ambient Light	0~100,000 lx
Shock Drop Test	1.5m drop onto a concrete surface
Regulatory
Electrical Safety	UL 60950 EN/IEC 60950
EMI/RFI	FCC Part 15 Class B EN 55024/CISPR 22
Environmental	RoHS

Depth of Field

Symbology	Resolution (mm)	Depth of field (mm)
Code39	5.0 mil	50mm ~ 120mm
Code39	15.0 mil	40mm ~ 250mm
UPC / EAN	15.0 mil	40mm ~ 250mm
Data Matrix	10.0 mil	40mm ~ 210mm
