DIGITUS DS-55315 Receiver unit

for Digitus DS-55314 Wireless HDMI / Splitter Extender Set

Wireless HDMI Extender Receiver Unit, 5 GHz Full HD, 1080p with splitter function for Extender Set (DS-55314)

Description

The additional receiver unit for the Wireless HDMI Extender / Splitter Set supplements this multicast system with up to 4 receiver modules and receives your high-resolution HDMI video and audio signals wirelessly at a distance of up to 80 m (1:1 connection, unobstructed view). With true plug-and-play, the extension operation is very simple. Just connect the additional receiver to the power supply and you can start immediately.

In addition, you can also use the additional receiver module to control the devices at the location of the signal source with your existing infrared remote control. The extension module comes with an infrared connection cable. With this extension you can, for example, output the signal of a satellite receiver to another HDMI playback device.

Furthermore, you can build a multicast system of up to 4 participants and thus simultaneously output high-resolution Full HD content to up to 4 other HDMI output devices, such as TV sets or projectors. Save the hassle of installing HDMI cables and use this easy-to-use Wireless HDMI Extender System.

• Set extension for the Wireless HDMI Extender Set (DS-55314) to up to 4 receivers

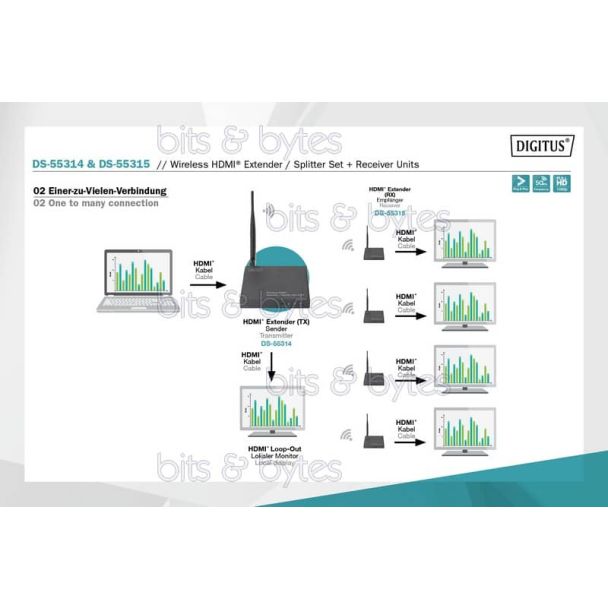

• Supports multicast (point-to-multipoint) transmission for up to 4 receiver units
• IR input for forwarding the remote control signal to the source device
• Distribute your HDMI signal on up to 4 TVs/monitors
• Plug and Play - no software or drivers needed

Technical details

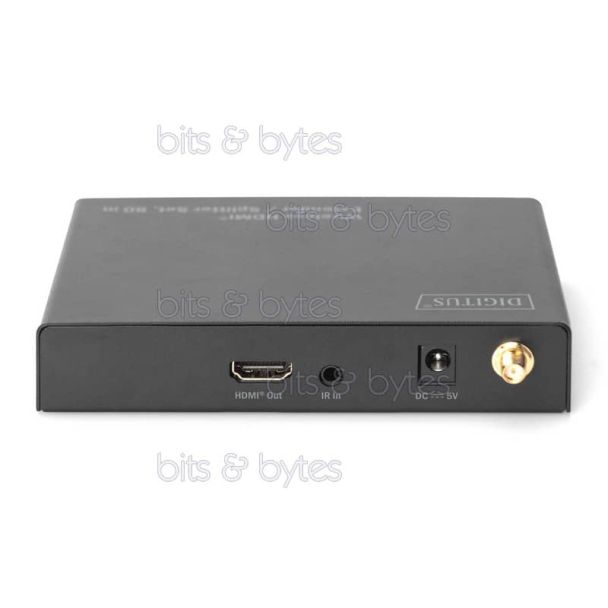

• Receiver connections:
• 1x HDMI (output)
• 1x IR (output)
• 1x power adaptor (5 V/DC)
• Transmission distance:
• 1:1 connection: up to 80 m (unobstructed view)
• 1:2 connection: up to 60 m (unobstructed view)
• 1:3 connection: up to 45 m (unobstructed view)
• 1:4 connection: up to 25 m (unobstructed view)
• Frequency: 5 GHz
• Wireless standard: 802.11a
• HDMI transfer rate: 6.75 Gbps
• Colour depth: 12 bits per channel
• Interlaced resolutions: 480i, 576i, 1080i (50/60 Hz)
• Progressive resolutions: 480p, 576p, 720p, 1080p (50/60 Hz)
• Compression: H.264
• Audio sampling rate: 44.1 / 48 kHz
• HDMI version: 1.3
• HDCP version: 1.3
• Frequency range of IR signals: 20 – 60 Hz
• Transmission latency: 150 – 200 ms
• LED indicators: Power / Link / Status
• Reset button
• Operation temperature: 0 °C – 50 °C
• Storage humidity: 5% – 90% RH (non-condensing)
• Power adaptor: 5 V DC / 2 A
• Receiver unit power consumption: 3.0 W
• Dimensions: L 13 x W 10 x H 2.6 cm
• Receiver weight: 145 g
• Enclosure material: Metal

Note:

• The transmission distance with limited visibility cannot be determined arbitrarily and depends on local circumstances
• Walls, glass, etc. restrict signal coverage or cause signal loss

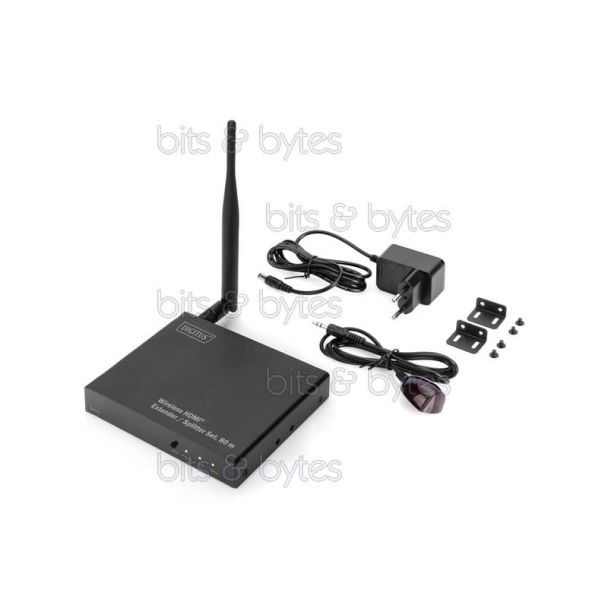

Package content

• 1x receiver unit
• 1x power adaptor, cable length: 1.2 m
• 1x antenna
• 1x IR connection cable, 1.2 m
• 1x mounting material for wall mounting
• 1x user manual
