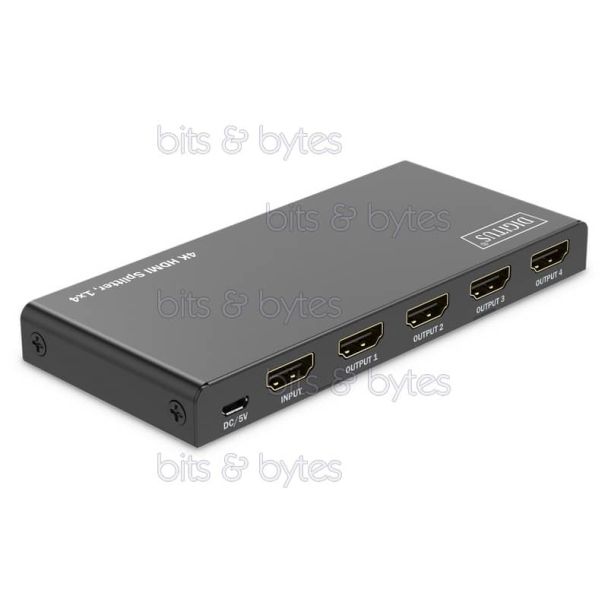

Digitus DS-55337 - 4 Port HDMI Splitter - 1 Input <> 4 Output (4Kx4K)

The DIGITUS HDMI Splitter splits your HDMI device’s audio and video signals on 4 TVs, monitors or projectors with a resolution of UHD 4K / 60 Hz. Via EDID management, you can choose from 3 modes (Copy, Auto, Downscaler). The integrated Downscaler supports the display of 4K contents on Full HD displays.

Additionally, 4K as well as Full HD displays can be operated simultaneously. Thanks to its Auto-EDID function, the splitter automatically recognizes the connected displays - no manual settings required. The video splitter is supplied with power via the Micro USB cable, e.g. via the source device or a USB charging adapter.

• Distributes an HDMI signal onto 4 TVs/monitors/projectors
• EDID management: Auto/Copy/Downscaler
• Power supply via Micro USB cable (included)
• Max. resolution: 4K/60Hz (4:4:4)
• Video bandwidth: 18 Gbps
• HDTV Resolution max.: 3840 x 2160 Pixel, 60Hz
• HDTV Standard: Ultra HD 4K
• Number of ports: 4
• Signal input: HDMI
• Signal output: HDMI
• Supports High Dynamic Range (HDR)
• Supports HDCP 2.2
• Supports Deep Color (36-bit)
• Supports compressed (e.g. DTS, Dolby Digital, etc.) and uncompressed audio formats (e.g. LPCM, etc.)
• HDMI 2.0

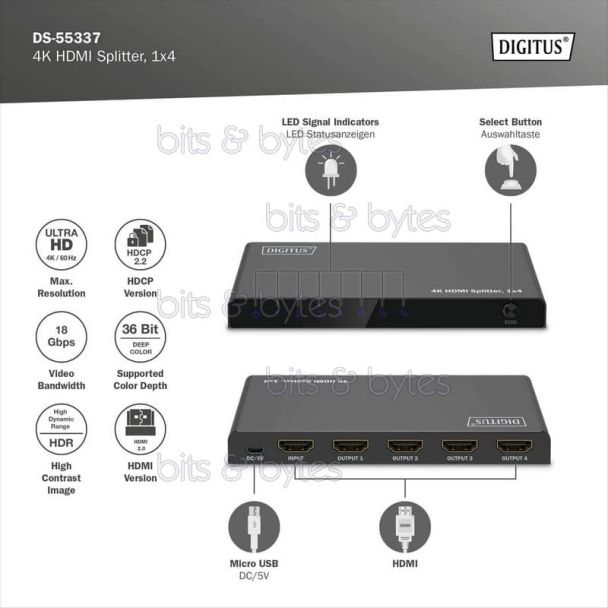

• Connections:
  • 1x HDMI input (4K/60Hz)
  • 4x HDMI output (4K/60Hz)
  • 1x Micro USB input (DC 5V) - Power supply
• 8x Status LEDs
• 1x EDID changeover switch
• Operating temperature: 0-70°
• Power consumption: approx. 5W
• Housing: Metal
• Dimensions (housing): L 13.6 x W 6.1 x H 1.4 cm
• Weight: 182 g
• Colour: black

• 1x HDMI splitter
• 1x Micro USB cable (0.75 m)
• 1x QIG
