Increase Your Network Speed and Save Energy

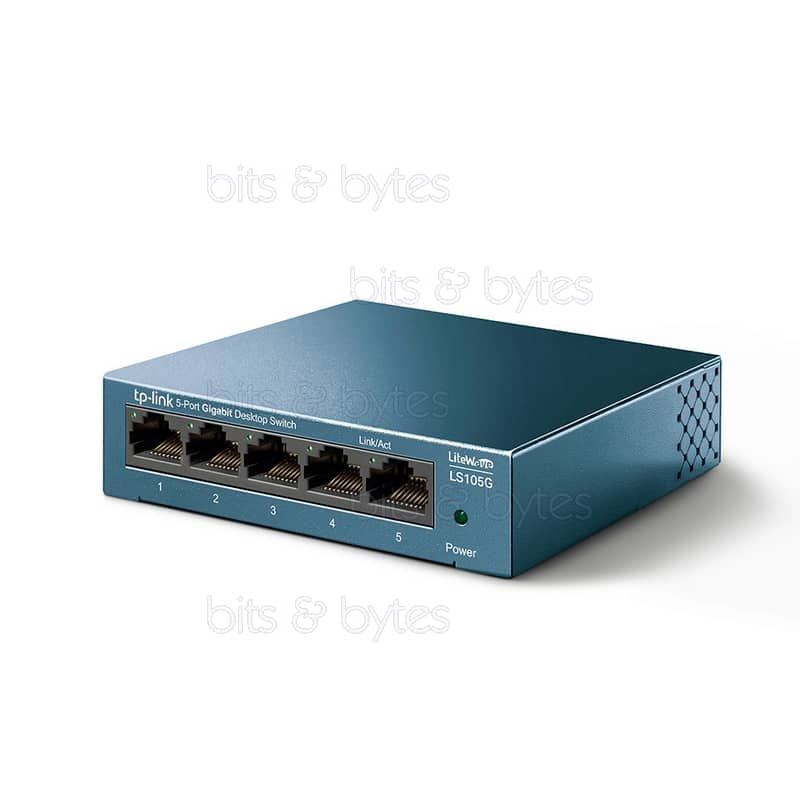

5-Port Gigabit Desktop Switch - LS105G
- Let LiteWave Bring You Lighter Network Life: The TP-Link LiteWave Series Unmanaged Switches provide an easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.
- Plug and Play:
- Connect to Power
- Connect The Devices
- Enjoy
- 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3X flow control provides reliable data transfer

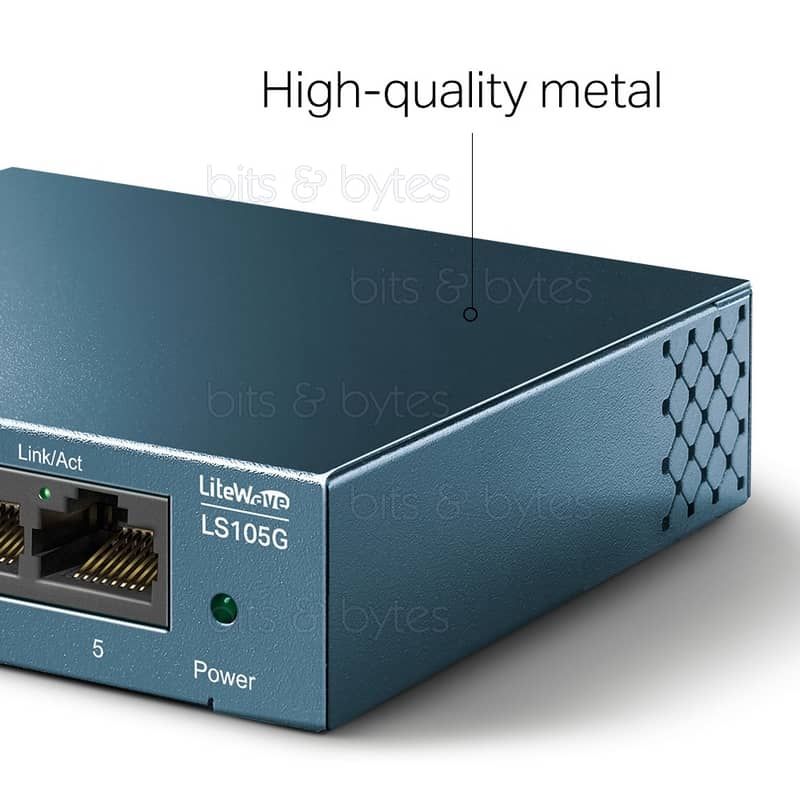

- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS function
- Plug and play, no configuration needed
HARDWARE FEATURES
- Standards and Protocols:
- IEEE 802.3i / 802.3u / 802.3ab / 802.3x
- IEEE 802.1p
- Interface: 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
- Fan: Fanless
- External Power Supply: External Power Adapter - 5VDC / 0.6AÂ Output
- LED Indicator:
- System Power
- Link / Act indicators per port built into each RJ-45 port
- Dimensions (WxDxH):Â 99.8 x 98 x 25 mm
- Max Power Consumption: 2.776W (220V/50Hz)
- Max Heat Dissipation: 9.466 BTU/h
PERFORMANCE
- Packet Forwarding Rate: 7.4 Mpps
- MAC Address Table: 2K
- Packet Buffer Memory: 1 Mb
- Jumbo Frame: 16 KB
SOFTWARE FEATURES
- Advanced Features
- Green Technology
- 802.3X Flow Control
- 802.1P/DSCP QoS
- Transfer Method: Store and Forward
OTHERS
- Certification: CE, FCC, RoHS
- Package Contents:
- 5-Port 10/100/1000Mbps Desktop Switch
- Power Adapter
- Installation Guide
- Environment:
- Operating Temperature: 0°C~40°C
- Storage Temperature: -40°C~70°C
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5%~90% non-condensing
| Colour | Black |
|---|---|
| Connection | RJ45 |
| Speed | Gigabit |
| Form Factor | Desktop |
| Interface | Ethernet |
