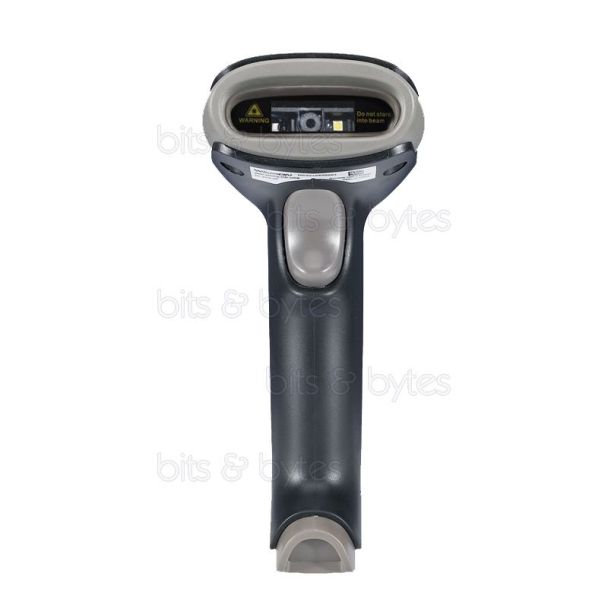

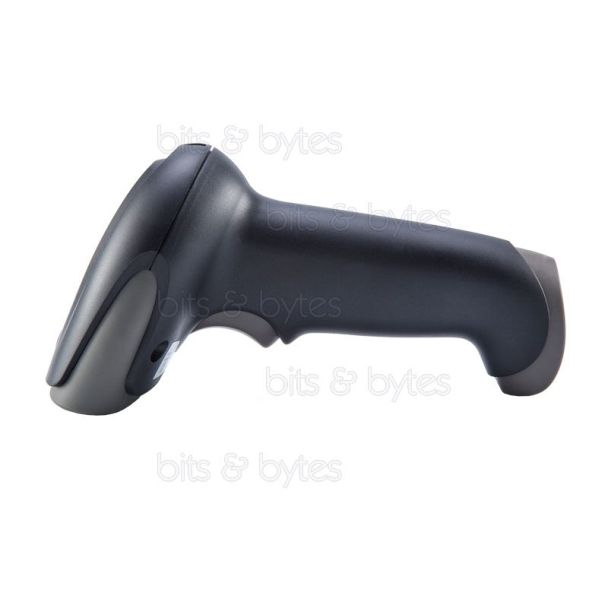

Winson WNI-6220G CMOS 2D Handheld Barcode Reader (USB Cable)
.jpg)
.jpg)
-1.jpg)
-2.jpg)
Superior decoding performance
- CMOS decoding technology, with a 20% contrast ratio helps to read 1D and 2D paper code, screen code, colour code, damaged code, fold code and reflective code.
- Long range barcode scanner
- 1280 x 800 million pixels professional lens ensure quick barcode scanning.
- 30% faster than an ordinary scanner.
Wide decode angle
- Long-distance wide-angle professional lens and high-precision imaging technology, combined with the latest decoding algorithm let us complete barcode scanning without deliberately positioning barcodes to the scanner.
Reads small high-density barcode
- It quickly reads paper and screen codes of different sizes, densities and digits.
- 1000-digit passenger code, 2000-digit paper code can be read.
Long life span
- Shockproof and anti-broken
- Works well after a 1.2 drop onto the concrete surface floor
- Famous brand C&k button works normally even after being triggerred1,500,000 times
- Compatible with almost all common systems, as Windows, Android, Mac OS, IOS, Linux etc.
- Supports multiple keyboard languages
- Supports Custom Function: such as add a prefix/suffix, delete the last four characters, interlaced upload data.
- Supports self-upgrade, no limitation for Keyboard Cash
- 32 Bite CPU, highly efficient, and greatly improves the working efficiency.
- Supports plug and play, no need to manual install driver
- The working mode of barcode scanner can be adjusted - set as continuous reading or single reading, scan the same barcode or not, delay data upload.
- Supports multi-barcodes, such as:Â
- 1D： UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
- 2D：PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec
| Electrical Characteristics | |
| Interface | USB HID KEYBOARD/USB VCP |
| Voltage requirement | DC5V± 10% |
| Current consumption | Max:250mA |
| Optical Characteristics | |
| Photosensor | CCD linear sensor |
| Sensor Resolution | 1280 x 800 Pix |
| Light source | White LED x1 |
| Aim light source | Red Bar led |
| Performance Characteristics | |
| Decode angle | Pitch angle： ± 70° Skew angle： ± 70° Tilt angle： ± 180° |
| Field of View | 53° (H), 33° (V) |
| Min resolution | 1D： 0.101mm/4mil（PCS 0.9） 2D： 0.178mm/7mil（PCS 0.9） |
| Min.PCS value | >20%UPC/EAN 13 (13mil) |
| Language | Multiple languages |
| Identification |
1D: UPC-A/UPC-EEAN-8/EAN-13 Code128; Code39; Code93; |
| Physical Characteristics | |||||
| Weight | 120g | ||||
| Dimensions |
90mm×67mm×168mm (LxWxH) |
||||
| Indicator | Beeper, LED | ||||
| Environmental Characteristics | |||||
| Temp |
-20° - 65°C (operation) -30° - 70° C (storage) |
||||
| Humidity |
5 - 90% (operation) 5 - 90% (storage) |
||||
| Ambient Light | 0-80, 000LUX | ||||
| Shock drop test | 1.5m drop onto a concrete surface | ||||
| Depth of Field | |||||
| Symbology | Resolution | Barcode number |
Barcode width |
Nearest | Farthest |
| Code 128 | 3.34mil | 15 | 1.8 x 1.5cm | 6cm | 10cm |
| Code 128 | 5mil | 20 | 4.3 x 1.5cm | 5.5cm | 15cm |
| Code 128 | 15mil | 7 | 4.3 x 1.5cm | 4cm | 45cm |
| Code 39 | 6.67mil | 16 | 4.4 x 1.5cm | 5cm | 18cm |
| Code 39 | 20mil | 4 | 4.3 x 1.5cm | 4.5cm | 50cm |
| EAN-13 | 13.34mil | 13 | 4.2 x 1.5cm | 3.5cm | 34.5cm |
| QR code | 20mil | 120 | 2 x 2cm | 4.5cm | 30cm |
| Data Matrix | 6.67mil | 60 | 0.5 x 0.5cm | 7cm | 13.5cm |
| PDF417 | 13.34mil | 23 | 3.5 x 31.5cm | 4cm | 32.5cm |
| Screen QR code | 18 | 2.1x2.1cm | 4cm | 56cm | |
| Screen QR code | 18 | 3.7x3.7cm | 6cm | 88cm |
|
| Colour | Black |
|---|---|
| Scanner | CMOS |
| Scan Engine | 2D |
| Type | Hand-Held, Wired |
| Interface | USB 2.0 |
