The DIGITUS® Professional Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany
- Robust steel construction for sturdy wall mounting

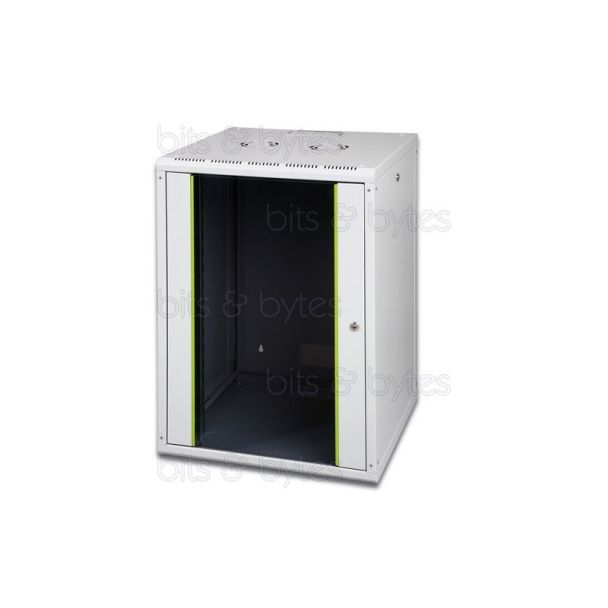

- Lockable safety-glass door with steel frame
- Side panels are lockable and removable
The Wall Mounting Cabinets of the Unique Series were designed for the user friendly installation of active- and passive network components accompanied by a neat cable management.
- Each rack consists of up to 1.5 mm strong steel sheet material which ensures a very good stability as a robust steel construction.
- The color is created by powder coating in grey (RAL 7035) and black (RAL 9005).
- Wall installation can be done easily, just mount the rear wall of the housing on your wall and then simply connect it with the rest of housing. (Separately leveling feet or castors are available for free standing purposes.)

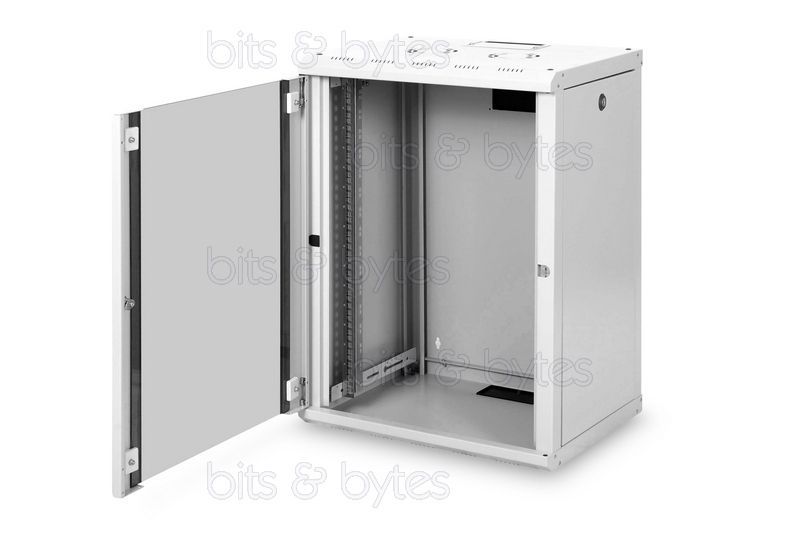

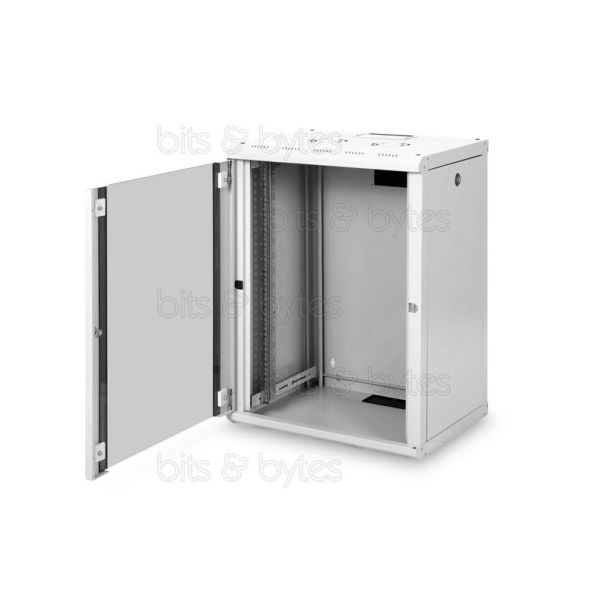

- Door and side panels are easy to detach and the door stop can be changed from right to left.

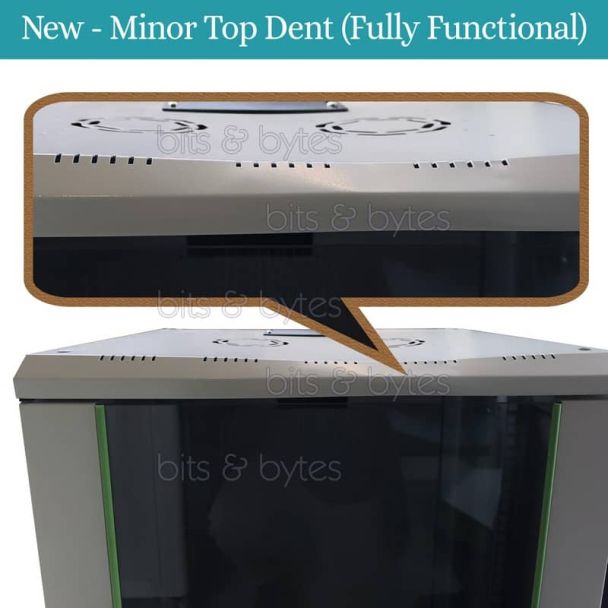

- The roof contains air ventilation slots for a better air circulation.
- Each wall mounting cabinet contains one pair (two pieces) of mounted 483 mm (19”) profile rails inside.
- They are galvanized, with height unit marking (countable from both directions) and variable in depth.
- The roof of each cabinet is equipped with a sliding cable entry panel with rubber sealing. Punched out cable entries with plastic cover are present on the rear wall and base.
- Includes installation set (screws, cage nuts, washers).
Doors |
1 door Lockable (1 point locking mechanism) Safety-glass door with steel fram 210° opening angle |
Sidepanels | Lockable and removable |
19“ profile rails |
Mounted on the front side inside of the cabinet |
Max. installation depth | 370 mm |
Cable entry | Rear side and base with plastic cover and top with sliding cover |
Ventilation |
Slot for active and passive ventilation and exhausting |
Earthing points |
Several points for rack components |
Mounting level | Front Side |
Type of profile rail | Crank |
W x D x H (mm) | 820 x 600 x 450 |
Modular spacing | 482.6 mm (19 inch) |
Number of height units | 16 |
Roof plate | Yes |
Earthing | No |
Socket | No |
Material | Steel |
Surface | Powder coating |
Colour | Grey |
RAL-number | 7035 |
Demountable | No |
Degree of protection (IP) | IP20 |
Colour | Grey |
---|---|
Size | 16U |
