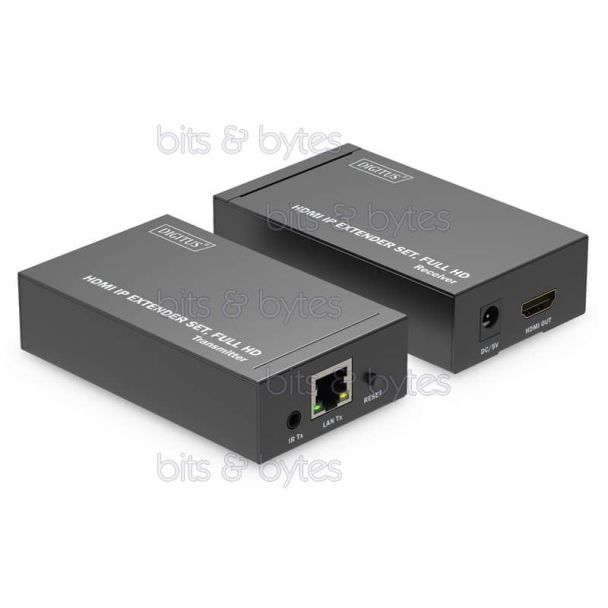

Digitus DS-55517 HDMI Extender Set over Network IP with IR Function (up to 120 meters)

DESCRIPTION

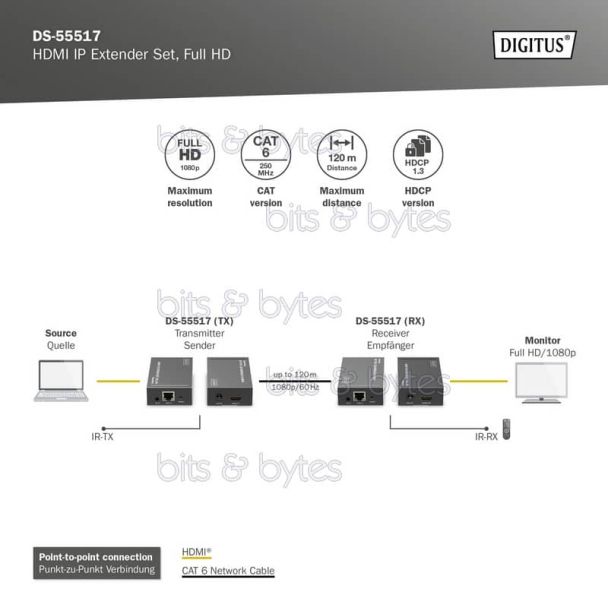

The HDMI Extender Set is a powerful video distribution system that consists of one transmitter and a receiver unit. It extends Full HD AV signals using a CAT6 or CAT7 network cable (point-to-point connection) up to 120 m.

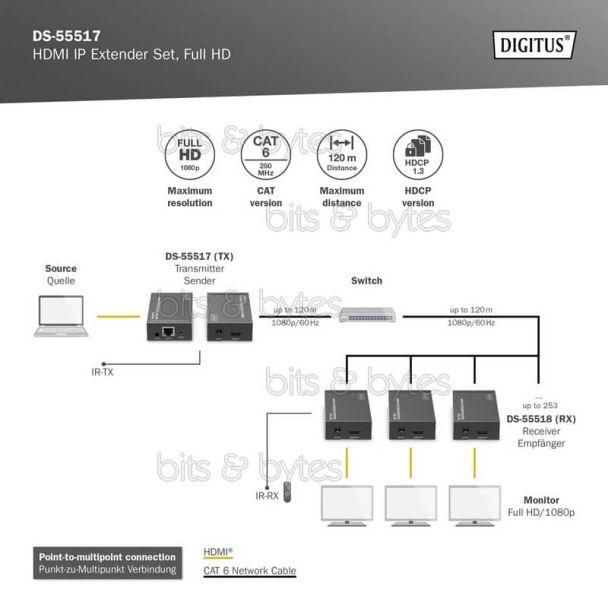

In addition, using network switches and the individual receiver units (DS-55518), you can distribute your video content over up to 253 displays via the already existing network (IP connection) and extend them over an unlimited distance.

The additional integrated unidirectional IR interface enables remote control of the input source from the output screen (receiver side).

TECHNICAL DETAILS

• Use additional receiver units (DS-55518) and your existing network infrastructure to display video content on up to 253 screens (IP connection)
• Extends Full HD AV signals with a CAT6 cable over an unlimited distance via the existing local network infrastructure or commercial network switches
• Extends Full HD AV signals with a CAT6 cable up to 120 m (point-to-point connection)
• Supports resolutions of up to 1080p/60Hz, Full HD
• Supports CAT 6, CAT 6A, CAT 7, CAT 8 network cable
• IR interface enables remote control of the input source from the output screen
• HDCP 1.3
• Transmitter unit connections:
• 1x HDMI input (1080p/60Hz) - Connection signal source
• 1x RJ45 output - Connection CAT transmission cable
• 1x IR output - Connection of IR transmitter
• 1x Power adapter input (DC 5V/2A) - Connection for external power adapter
• 1x Reset button
• Receiver unit connections:
• 1x HDMI output (1080p/60Hz) - Connection output device
• 1x RJ45 input - Connection CAT transmission cable
• 1 x IR input - Connection of IR receiver
• 1x Power adapter input (DC 5V/2A) - Connection for external power adapter
• Suitable for wall mounting
• Operating temperature: 0-50°
• Power consumption: 8W
• Housing: Metal
• Dimensions (1 unit): L 10 x W 5.9 x H 2.5 cm
• Weight (1 unit): 165 g
• Colour: black

PACKAGE CONTENT

• 1x Transmitter unit
• 1x Receiver unit
• 1x IR transmission cable (1.2 m)
• 1x IR receiver cable (1.2 m)
• 2x Power adapter (DC 5V/2A, 1.15 m)
• 1x Mounting material
• 1x User manual
