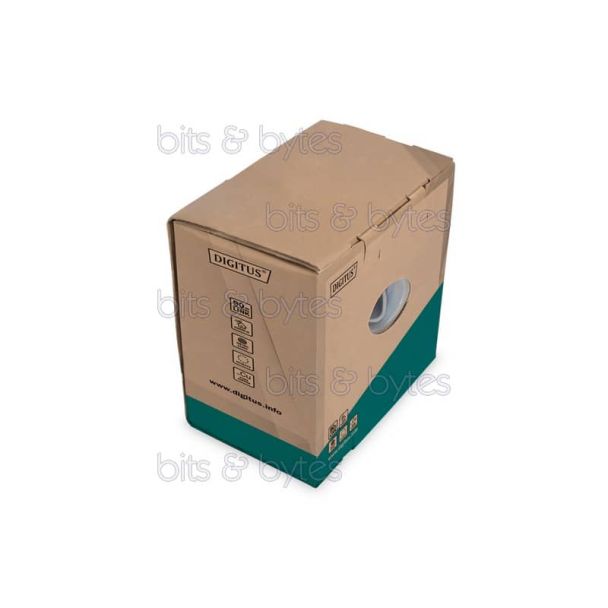

Digitus ASSNET250 CAT6 U-UTP Network Installation Cable (305m)

DESCRIPTION

The ASSNET250 Cat.6 U/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 CCA wires and reaches a transmission frequency up to 250 MHz. The PVC jacket conforms to the CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary areas.

• 1GBit Ethernet
• 250 MHz transmission frequency
• CPR class Eca

TECHNICAL DETAILS

• Physical Properties:
• Conductor: Copper covered aluminum, solid AWG 23/1
• Insulation: HD-PE (High Density Polyethylene)
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Individual pair shield: None
• Overall shielding: None
• Outer sheat: Eca acc. to EN 50575; PVC
• Outer sheath diameter (nominal): 0.55 mm nominal
• Outer sheath colour: Grey (RAL 7035)
• Mechanical properties:
• Tensile loading: 150N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Shipping- and storage temperature range: -20 °C up to +75 °C
• Operating temperature range: -20 °C up to +60 °C
• Installation temperature range: 0 °C up to +50 °C
• Electrical properties:
• Impedance: 100±15 Ohm @ 1-100 MHz
• Capacitance: 40 pF/m nominal @ 800 Hz
• Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
• Insulation resistance: 2 GOhm x km min.
• DC loop resistance: 262 Ohm/km max. (2% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Coupling attenuation: CA-Type 3
• Signal propagation delay: 535 nS/100 m max.
• Propagation delay: 20 nS/100 m max.
• Other:
• Separating class: ,,b" acc. to EN 50174-2
• Maximum operating length: 60 m
• NVP: 69%
• Shielding: U-UTP, unshielded
• CPR: Eca
• Length: 305 m
• Colour: grey
• Jacket: PVC
• Structure: 4 x 2 AWG 23/1, solid twisted pair
