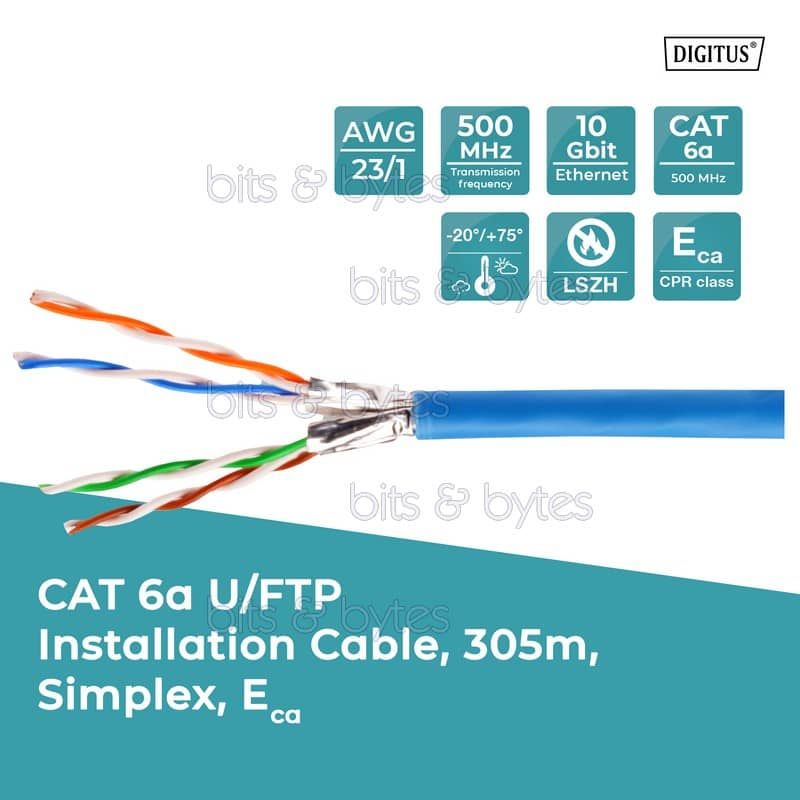

The Digitus® Professional Cat.6A U-FTP installation cable is characterized by the following cable construction:
-
Category 6a cables are made of 4 of high-performance twisted pair conductors, with higher specifications for lower cross talk and system noise than Cat5e cables. The cable standard provides performance of up to 500MHz and is used for Ethernet networks running at speeds up to 10 Gigabit. Cat6a cables are backward compatible with Cat6 & Cat5e systems.
-
U-FTP: Unshielded Foiled Twisted Pair – U-FTP cables consist of pairs of wires twisted together with a layer of foil wrapped around the individual twisted pairs. This protects against electromagnetic and radio-frequency interference and crosstalk.
- LS0H: Low smoke zero halogen – LS0H is a material standard for cable jacketing which emits limited smoke and no halogen when exposed to high sources of heat. (LS0H is also known as LSZH, LSOH, LSFH or OHLS.) This cable conforms with standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca.
- Suitable for building structured cabling in the secondary and tertiary area
- Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1.
- PoE Power over Ethernet support
Physical properties | Basic conductor | Solid AWG 23/1, bare annealed copper 0.57 mm nominal |
Insulation | HD-PE | |
Total number of insulated conductors | 8, twisted in 4 pairs | |
Color code | Blue-white, orange-white, green-white, brown-white | |
Individual pair shielding | Aluminum foil, providing 100 % coverage | |
Outer jacket | Halogen-free (FRNC-B/LSZH-1) | |
Outer jacket diameter | 0.5mm nominal | |
Color | Light blue (RAL 5012) | |
Mechanical properties | Tensile loading | 150N max. |
Dynamic bending radius | 8x AD mm min. | |
Static bending radius | 4x AD mm min. | |
Shipping- and storage temperature range | -20 °C up to +60 °C | |
Operating temperature range | -20 °C up to +75 °C | |
Installation temperature range | 0 °C up to +50 °C | |
Fire load | 650Mj/km | |
Electrical properties | Mean impedance | 100±5 Ohm @ 1-600 MHz |
Capacitance | 40 pF/m nominal @ 1 KHz | |
Capacitance unbalance (pair-ground) | 1.6 pF/m max. @ 1 KHz | |
Insulation resistance | 5 GOhm x km min | |
DC loop resistance | 147 Ohm/km max. (2% max. resistance unbalance) | |
Voltage resistance | 72 Vdc max. | |
Coupling attenuation | 65 dB | |
Signal propagation delay | 450 nS/100 m max. | |
Proagation delay | 15 nS/100 m max. | |
Separating class | “c” acc. to EN 50174-2 | |
NVP | 70% | |
Conductor material | Cu, bare | |
Diameter conductor | 0.56 mm | |
Nominal cross section conductor | 0.2582 mm² | |
AWG-size | 23 | |
Conductor category | Class 1 = solid | |
Number of cores | 1 | |
Stranding element | Pairs | |
Core insulation | PE (polyethylene) | |
Core identification | Colour | |
Screen over stranding element | Foil | |
Screen over stranding | None | |
Material outer sheath | Polyolefin | |
Colour outer sheath | Blue | |
Outer diameter approx. | 7.2 mm | |
Halogen free & smoke-proof | IEC 60754-1/2 & IEC 61034 | |
Flame retardant | IEC 60332-1-2 | |
Low smoke (acc. EN 61034-2) | Yes | |
Category | 6A (IEC) | |
NVP value | 70% |
Colour | Blue |
---|---|
Type | CAT 6a |
Length | 305 m |
Shielding | U-FTP |
Conductor | Bare Copper |
Outdoor | No |
