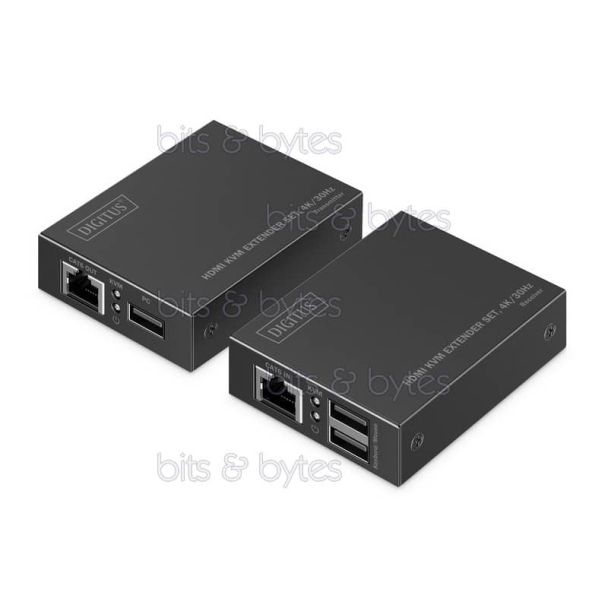

Digitus DS-55357 4K HDMI KVM Extender Set (up to 70 meters) 4016032501954

Digitus DS-55357 4K HDMI KVM Extender Set (up to 70 meters)

Name: Digitus DS-55357 4K HDMI KVM Extender Set (up to 70 meters)
Brand: DIGITUS
SKU: 210176
Price: 136.301801 EUR
Availability: InStock

In stock

Only 1 left

SKU

210176

Be the first to review this product

Special Price €136.30 Regular Price €151.44

DIGITUS

Details

More Information

Reviews

Description

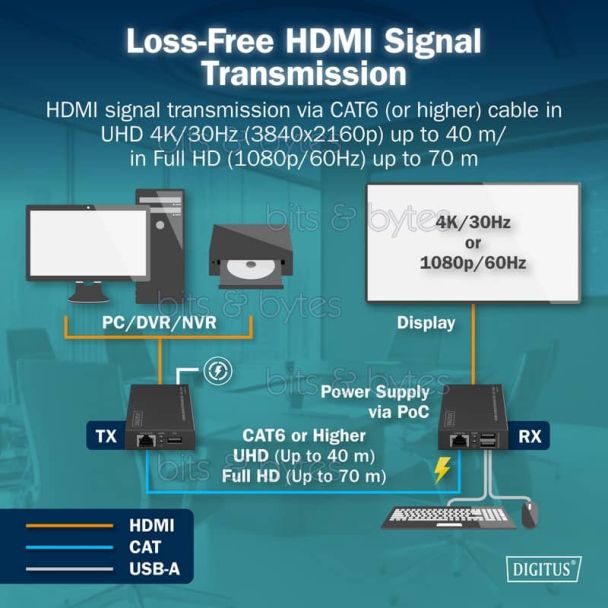

The HDMI KVM Extender Set (4K/30Hz) enables lossless and virtually latency-free (10-20 ms) transmission of AV signals in Ultra HD resolution (4K/30Hz) over a distance of up to 40 meters using a CAT6 or higher-quality network cable. Thanks to the integrated KVM function, the mouse and keyboard can be connected directly to the receiver side, enabling convenient remote control.

The system supports both uncompressed HDMI signal transmission in 4K/30Hz over 40 meters and Full HD (1080p/60Hz) transmissions over a distance of up to 70 meters.

The ultra-low latency technology ensures virtually lag-free image playback (10-20 ms latency) and a seamless user experience. For easy and flexible installation, the set offers PoC (Power over Cable) support so that only the transmitter unit needs to be supplied with a power supply unit. Thanks to Plug & Play installation, quick and uncomplicated commissioning is guaranteed.

The HDMI KVM Extender Set is the ideal solution for professional applications, conference rooms, industrial control systems or home theater setups that require high-resolution signal transmission with additional control options.

Technical details

Max. Resolution: Ultra HD 4K/30Hz (3840x2160p)
Max. Range:
- 4K/30Hz (3840 x 2160p): 40 m
- 1080p/60Hz: 70 m
Supports CAT6 or higher network cables
HDMI 1.4
HDCP 1.4
Max. Video bandwidth: 10.2 Gbps
Latency: 10-20 ms
Supports HDR10 (High Dynamic Range)
Max. HDMI cable length: 5 m
Protection against ESD (electrostatic discharge)
Operating temperature: -20° - 60° C
Power consumption: TX + RX approx. 10 W
Dimensions (1 unit): L 7.5 x W 6.0 x H 2.0 cm
Weight (1 unit): 123 g

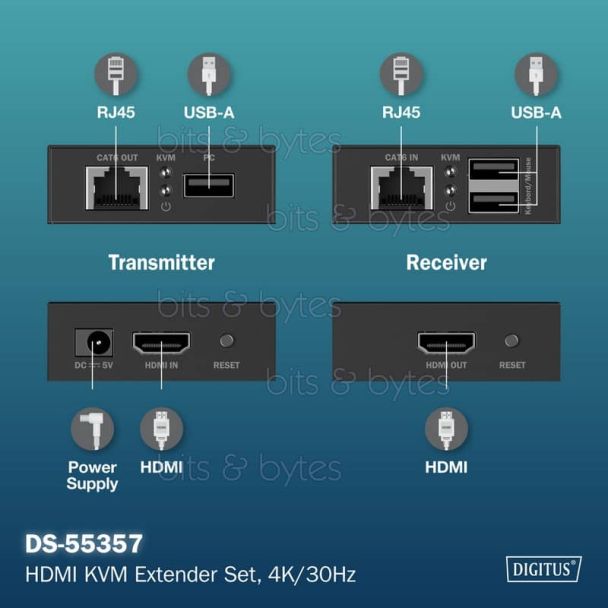

Transmitter unit (TX) connections:
- 1x HDMI input (4K/30Hz) - Signal source connection
- 1x RJ45 output (Gigabit Ethernet) - CAT transmission cable connection
- 1x USB-A (1.1) - Signal source connection (PC)
- 1x power supply connection (DC 5V/2A) - external power supply connection
- 1x reset button
- 2x status LED
Receiver unit connections (RX):
- 1x HDMI output (4K/30Hz) - Display connection
- 1x RJ45 input (Gigabit Ethernet) - CAT transmission cable connection
- 2x USB-A (1.1) - Mouse & keyboard connection
- 1x reset button
- 2x status LED
Housing: Metal
Colour: Black

Package content

1x Transmitter unit
1x Receiver unit
1x Mains adapter, EU plug (DC 5V/2A, 1.2 m)
1x USB cable (1.2 m)
1x Operating instructions

Safety notes

If the device is powered by a plug-in power supply, ensure that the power adapter is connected correctly and meets the specified requirements (e.g. voltage and current).
Only use certified CAT5e or CAT6 cables to ensure stable signal transmission.
For particularly long cable runs or in environments prone to interference, it is recommended to use shielded network cables.
Make sure that all connections are tight and secure to avoid loose contacts that could affect the signal quality. Make sure that the HDMI and Ethernet connections are connected correctly.
Make sure that the CAT cable is not laid near high-voltage power lines or other strong sources of electromagnetic interference to avoid signal interference.
Only operate the device within the specified temperature range.
Do not use the device outdoors or in damp or wet environments
Check all connections and cables regularly for wear or damage. Cables and connections can wear out, especially with frequent use or long installations, which can lead to poor signal quality or system failure.
